Microfluidics and Organ-on-a-Chip

MUX Distribution Valve

12/1 rotary bidirectional microfluidic valve for sequential injection of up to 12 solutions. Fast 160 ms switching, no dead volume, and full workflow automation via Elveflow ESI software.

MFS Microfluidic Flow Sensor

Thermal-technology flow rate sensor covering 7 nL/min to 40 mL/min across 6 models. Non-invasive, bidirectional, and fully compatible with Elveflow pressure controllers and the OB1 flow controller.

BFS Premium Coriolis Flow Sensor

Bronkhorst Coriolis flow sensor with accuracy down to 0.2%, broad µL/min to mL/min range in a single sensor, and fluid-independent mass flow measurement. The highest-accuracy option in the Elveflow range.

PEEK Bubble Remover

Autoclavable PEEK inline bubble trap with replaceable PTFE microporous membrane. Works passively or with vacuum assistance for flow rates up to 60 mL/min. Available in 3 internal volume sizes.

MPS Microfluidic Pressure Sensor

Compact inline gauge pressure sensor for liquids and gases, with 5 ranges from 70 mBar to 7 bar and accuracy down to 0.2% Full Scale. Ultra-small 7.5 µL internal volume and up to 1 ms response time.

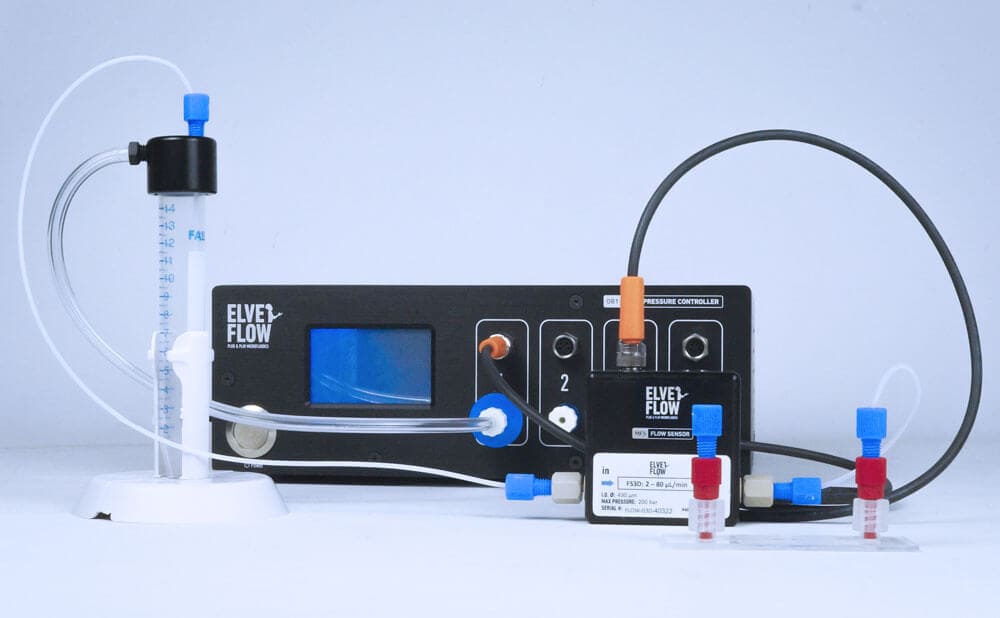

Microfluidics Starter Pack by Elveflow

Educational kit: All-in-one solution to discover microfluidics

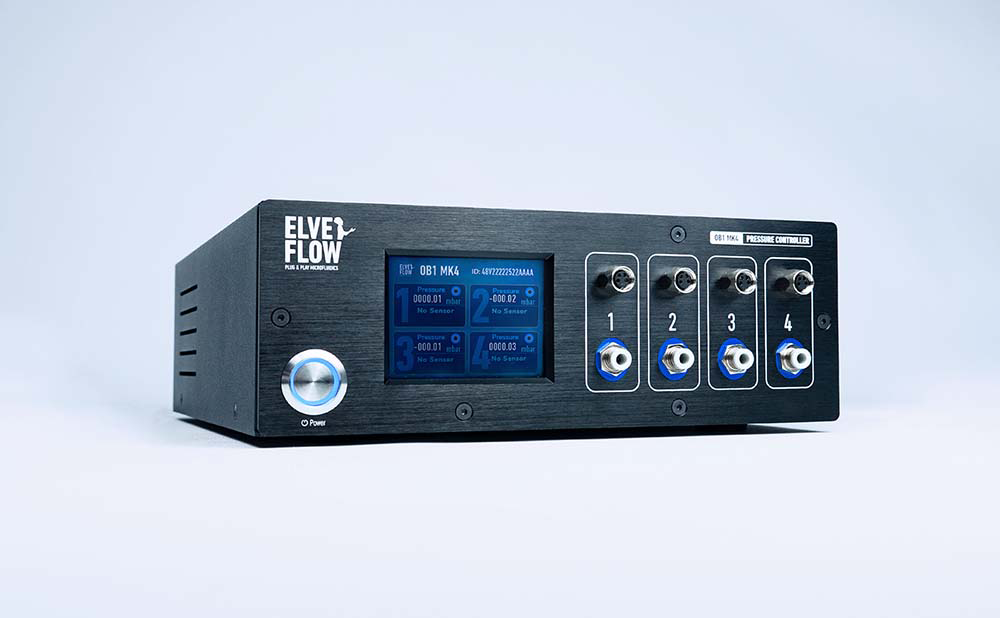

OB1-Microfluidic Flow Controller

1 to 4 channels pressure & vacuum microfluidic flow controller

Elveflow Cobalt Autonomous Microfluidic Pump

The Cobalt is a standalone and autonomous piezoelectric microfluidic pump with integrated pressure (and vacuum) source. Available in single-pressure (0 to 2000 mbar) and dual pressure/vacuum (-700 to 1000 mbar) versions, with embedded user interface and 0.1 mbar stability for portable benchtop microfluidic control without external gas supply.

MUX Flow Switch by Elveflow

The MUX Flow Switch is a compact matrix of up to 16 ON/OFF microfluidic valves with a 20 ms response time, using ROCKER® valve technology with under 10 nL flow displacement. Paired with an OB1 controller, it provides integrated, software-programmable upstream flow switching for sample injection, stop-flow, and complex protocol automation.

MUX Recirculation 6/2 Valve by Elveflow

The MUX Recirculation 6/2 is a 6-port / 2-position microfluidic valve for closed-loop fluid recirculation and precise sample injection. With under 180 ms switching, zero dead volume, and PCTFE/PTFE wetted parts, it enables automated long-term recirculation experiments and chemically robust workflows in combination with the Elveflow OB1 pressure controller.

MUX Quake Valve Controller by Elveflow

The MUX Quake Valve is a 16-valve 3:2 matrix dedicated to actuating bilayer PDMS Quake valves. With 20 ms switching, TTL trigger I/O, and ESI scheduler integration, it brings fast, precise, and fully programmable Quake-valve control to any PDMS-based microfluidic device when paired with an OB1 pressure controller.

MUX Cross Chip Multiplexer Flow Matrix by Elveflow

The MUX Cross Chip is a 4×4 microfluidic valve matrix that connects any of 4 inputs to any of 4 outputs and provides true zero-flow stop conditions in 100 ms. PEEK valves with 10-32 fittings, software-controlled and TTL-triggerable, it eliminates residual Poiseuille flow during imaging or separation phases for reproducible, plug-and-play microfluidic experiments.
