ibidi Pump System Quad
A pump system with 4 Fluidic Units for the cultivation of, e.g. endothelial, cells under flow for simulation of blood vessels Ideal simulation of various physiological conditions - continuous unidirectional, oscillating, and pulsatile flow Compatible with the ibidi Heating Systems, all incubators, and incubated microscopes

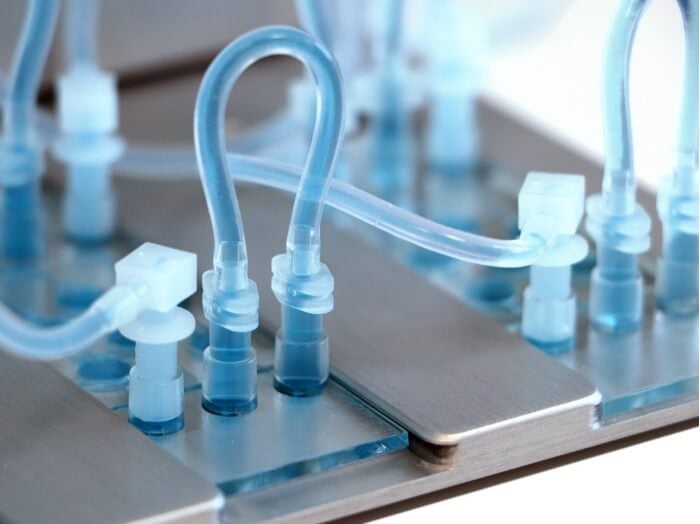

Minimal mechanical stress, minimal amount of medium and supplement neededThe Fluidic Unit Quad combines 4 Fluidic Units into one system, operated by a single ibidi Pump.
.webp)
Applications
- Defined shear stress in long-term culture (e.g., endothelial cells, kidney, or biofilm)
- Live cell imaging and immunofluorescence for analyzing shear stress response
- Mimicking shear stress conditions in microcapillary, venous, and arterial flow
- Rolling and adhesion of suspended cells on substrates
- 3D cell culture: interstitial flow

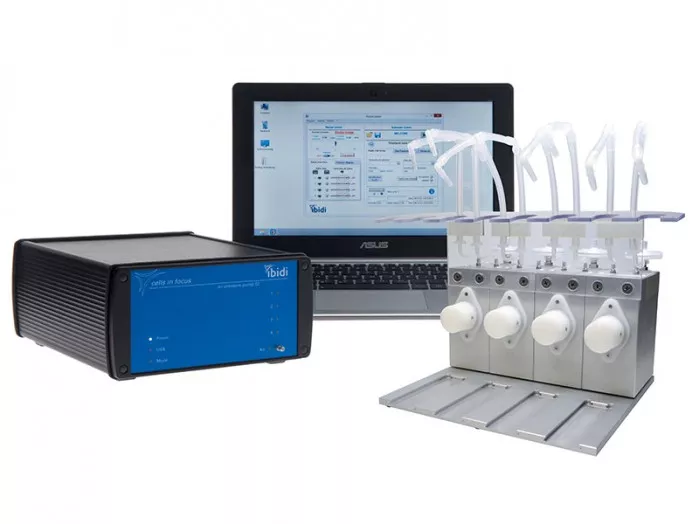

Components of the ibidi Pump System
ibidi Pump
- Computer-controlled air pressure pump
- Operates up to four parallel Fluidic Units per ibidi Pump
PumpControl Software
- Easy setup of an automated flow control for flow assays
- Internal calculation for flow rates, shear rates, and shear stress

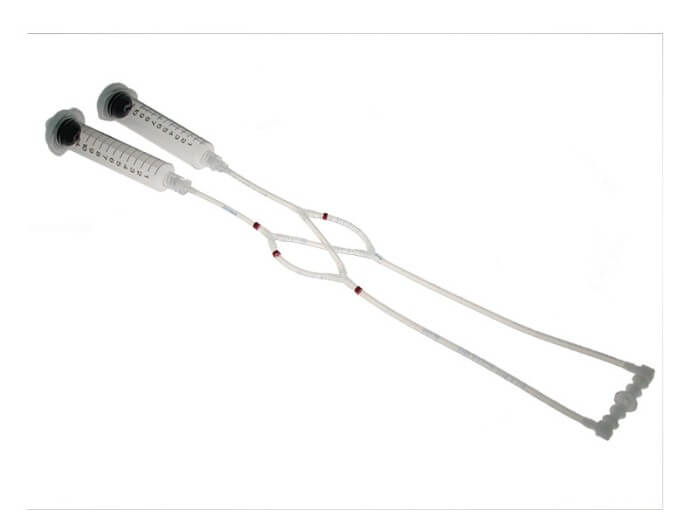

Perfusion Set
- Includes tubing and reservoirs to perform flow assays in combination with the Fluidic Unit
- Designed for various flow rates and volumes (see table below)
Fluidic Unit
- Flow-switching device with electrically controlled valves
- Equipped with a holder for one Perfusion Set (10 ml) and connected µ-Slide(s)
- For operation in the cell culture incubator
- Optional: Reservoir Holder for 2 ml and 50 ml Perfusion Sets

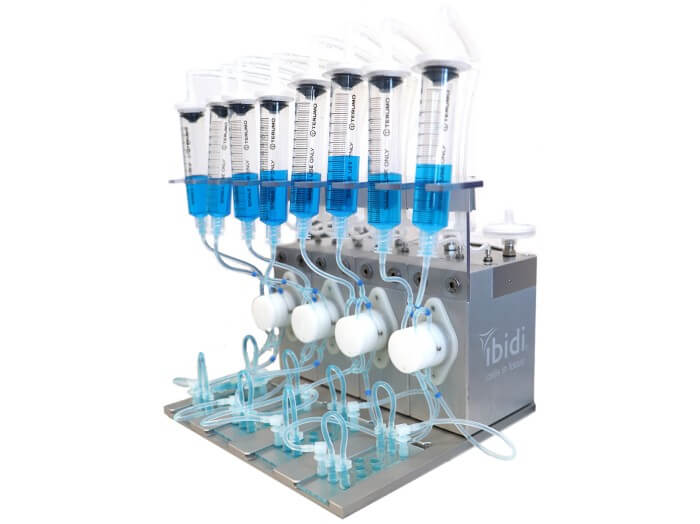

Optional: Fluidic Unit Quad
- Combines four Fluidic Units into one system
- Operated by a single ibidi Pump
- Please note: the 4 Fluidic Units of the ibidi Pump System Quad are firmly screwed. In case you want to use the Fluidic Units separately, we recommend to order 4 single Fluidic Units.

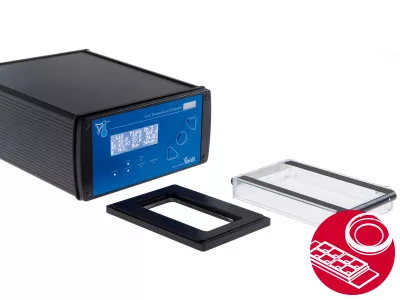

Optional: Heating Insert Adapter for Perfusion Assay
- Adapter for the ibidi Heating System, Universal Fit
- For long-term cell studies (several days) under flow conditions
Technical Features:
- Operates up to four parallel Fluidic Units per ibidi Pump
- Flow characteristics: all flow types are laminar
- Some examples:
- Unidirectional flow simulates veins or small arteries
- Oscillating flow simulates disturbed conditions at vessel branchings or valves
- Pulsatile flow simulates arterial conditions
- Wide range of flow rates (ca. 0.1–40 ml/min*) and shear stress (ca. 0.2–150 dyn/cm2*)
- Working volume: 2.5 ml / 12 ml / 50 ml
- Suitable for all µ-Slides with Luer adapters
- Also suitable for home-made flow chambers
- Compatible with all incubators
- Software-controlled flow rates and shear stress
* Depending on the Perfusion Set and channel used.
The ibidi Perfusion System Perfectly Reflects the Natural Environment of Cells Under Flow Conditions
The ibidi Pump System consists of two main components: The ibidi Pump (computer controlled air pump, placed outside the incubator) and the Fluidic Unit (holder for cell media reservoirs and µ-Slide, tubing, and electrically controlled valve set, placed inside the incubator). By using this “split” approach, the closed circulation of the medium can be assembled separately in the laminar flow hood and transferred to the microscope or the incubator, without compromising the sterility of the system. The open architecture using the Luer connectors allows the use of any kind of flow devices. The PumpControl software controls the pressure, and subsequently the shear stress acting on the cells, and provides the possibility to program complex flow patterns.
Placing the Fluidic Unit inside a large-size microscope incubator allows for running long-term perfusion assays directly on the microscope. A defined temperature and CO2 concentration is assured over the whole perfusion, which is necessary for avoiding air bubbles. For short-term experiments, the usage of a small incubator, hosting the Fluidic Unit, next to the microscope is sufficient.
Principle of Unidirectional Flow
Applying pressured air to the reservoirs of the Fluidic Unit moves the medium and generates the flow in the µ-Slide channels. In order to avoid wasting any medium, the liquid is pumped back and forth between reservoir A and reservoir B by switching the valve V1.
To assure a unidirectional flow in the channel, the other valve V2 is switched simultaneously. As the tubing parts inserted in the valve V2 are criss-crossed, the medium is always directed to the same end of the channel slide.
Example of a Perfusion Set-up on a Microscope
Ideal Setup inside a large-size microscope incubator. In combination with the ibidi Heating & Incubation System for short-term experiments.
Application Examples:
rAV CMV-LifeAct-TagRFP-transduced HUVEC, cultivated under 20 dyn / cm² in µ-Slide I 0.4 Luer
HUVEC, cultivated over 7 days at 10 dyn / cm². VE-cadherins are stained in green, cell nuclei are stained in blue.
Rolling and adhesion of polymorpho-
nuclear leukocytes on LPS-stimu-
lated cerebrovascular endothelial cells in µ-Slide VI 0.4 at 1 dyn / cm².
(Courtesy of G. Cepinskas, Ontario)
Suitable µ-Slides
The following ibidi µ-Slides can be attached to the ibidi Pump System:
Low shear stress
Medium shear stress
High shear stress
NOTE: Custom specific slides can also be used when utilizing the Luer adapters.
