Artinis Brite
Wearable fNIRS from any cortical region. A 300 gram control unit on the headcap, up to 27 channels from a configurable optode template, and inter optode distances from 10 to 55 mm so short separation channels sit on the same cap. Built for participants who will not sit still.
What is the Brite?
Wearable fNIRS. The control unit weighs 300 grams and clips to the headcap, so there is no backpack and no cable running to a trolley. It records oxy, deoxy and total haemoglobin concentration changes from any cortical region, up to 27 channels from a configurable optode template.

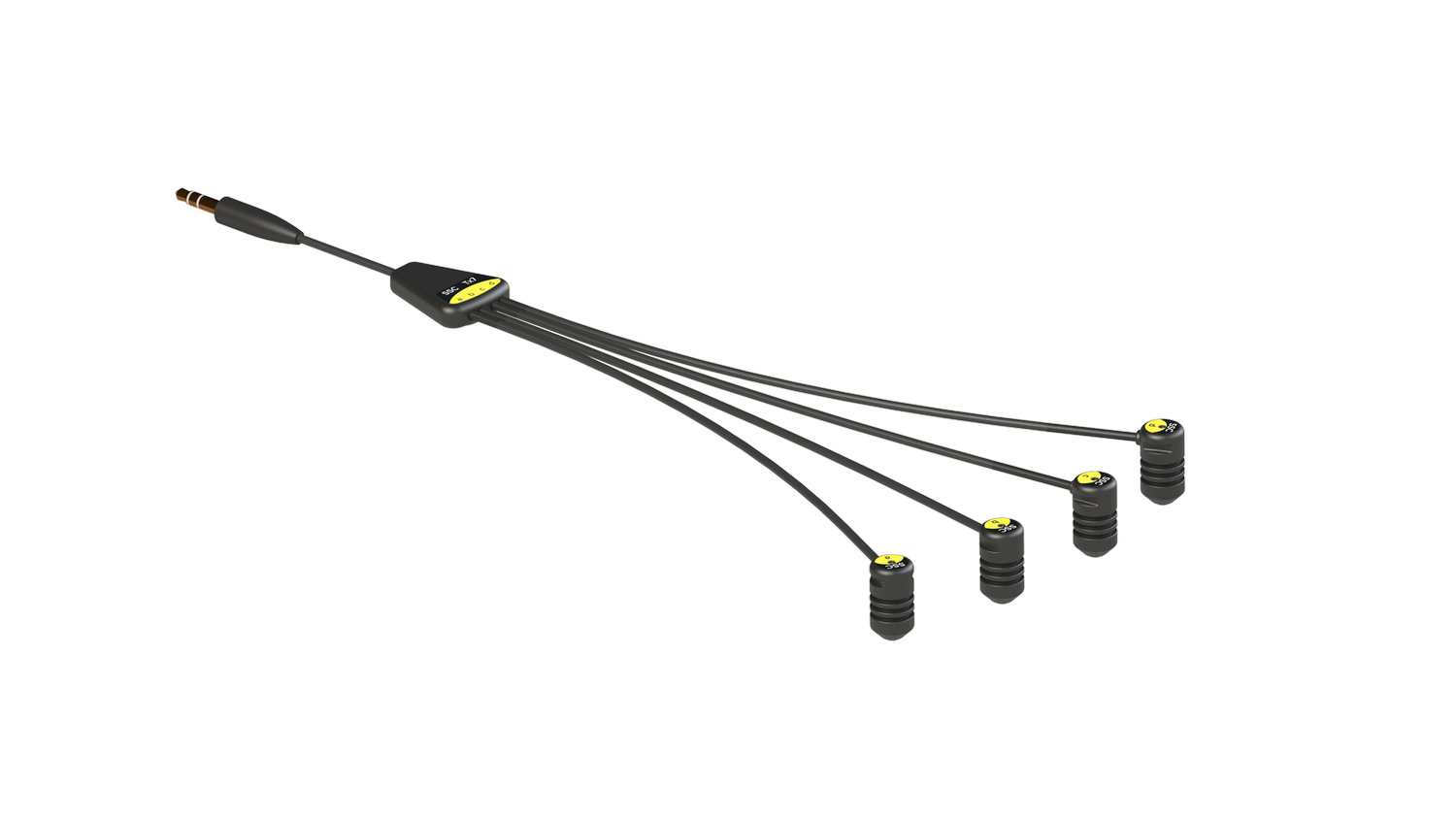

The inter optode distance adjusts from 10 to 55 mm. That is the part that decides what you can do with the Brite. Short distances sample the superficial layer, long distances reach deeper cortex, and short separation channels sit on the same headcap without a second system. An SSC splitter adds up to 8 more without taking many standard channels away.
Where the Brite is strongest is the participant who will not sit still. Children, patients, athletes mid movement, and any protocol where the same person comes back three times. Multi power gain control gives four output levels plus an automatic setting. Artinis put that there because dark thick hair and darker skin cost you signal, which is the weak point of the whole technique and not of this system in particular.
Where we would not put it. If the paper you want to write has a reconstructed image in it, 27 channels will not get you there. That is NIRSport2 territory and we sell that too, so say what you are running and we will point you at the right one.
Key Features
- 300 gram control unit, worn on the headcap
- Up to 27 channels from a configurable optode template
- Inter optode distance adjustable from 10 to 55 mm
- Short separation channels, with an SSC splitter for up to 8 more
- Multi power gain control, four levels plus automatic, for different hair types and skin tones
- 3 axis accelerometer and 3 axis gyroscope on the head
- Bluetooth, Wi-Fi, or offline recording to the device
- OxySoft and Brite Connect included

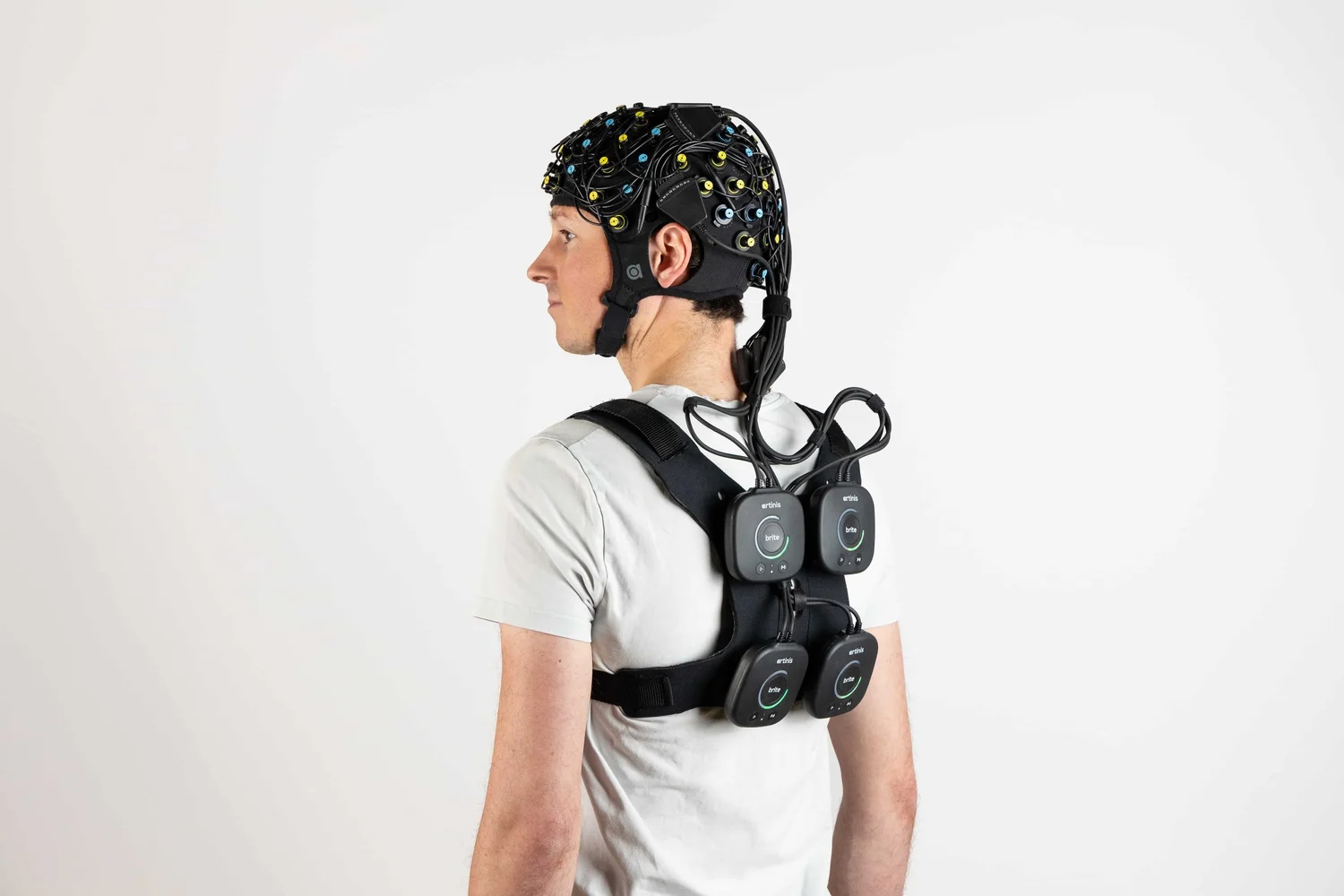

- MultiBrite Dual and Tetra configurations for wider coverage or hyperscanning
- Combines with EEG and tES in a single headcap
.webp)
| Weight | 300 g control unit |
| Channels | Up to 27, configurable optode template |
| Inter optode distance | 10 to 55 mm, adjustable |
| Short separation channels | Supported. SSC splitter adds up to 8 more |
| Gain control | Multi power, four levels plus automatic |
| Motion sensing | 3 axis accelerometer and 3 axis gyroscope, mounted on the head |
| Connection | Bluetooth, Wi-Fi, or offline recording to the device |
| Software | OxySoft and Brite Connect, both included |
| Multi device | MultiBrite Dual and Tetra. Brite Connect handles up to four devices |
| Multimodal | EEG and tES (tDCS, tACS, tRNS) in one headcap, plus eye tracking |
| Data export | .snirf from Brite Connect, for Homer or MNE Python |
| Manufacture | Designed and manufactured in the Netherlands |
| Regulatory | Research use only. Not a medical device |
Applications
- Cognitive neuroscience and prefrontal work
- Brain computer interface and neurofeedback
- Hyperscanning
- Sports science and movement
- Neuroergonomics and human factors
- Developmental and paediatric research
- Rehabilitation research
fNIRS
Explore All ProductsCognitive Neuroscience
Explore All ProductsBrain-Computer Interface Research
Explore All ProductsSports and Performance research
Explore All ProductsLearn more about the Artinis Brite
Academic publications and research studies using the Artinis Brite wearable fNIRS system, sourced from Google Scholar.
How many channels does the Brite give me, and is that enough?
Up to 27, from a configurable optode template. That covers one cortical region with a proper montage, whether motor, temporal or prefrontal. If you need whole head coverage or a reconstructed image, 27 channels will not get you there and we would quote you a NIRSport2 instead.
Does the Brite support short separation channels?
Yes. The inter optode distance adjusts from 10 to 55 mm, so short and long channels sit on the same headcap, and an SSC splitter adds up to 8 more without taking many standard channels away. If you are publishing task activation, you want them.
Will it work on thick dark hair?
Better than it used to, and not perfectly. Multi power gain control gives four output levels plus an automatic setting, aimed at different hair types and skin tones, and spring optode holders help on temporal, parietal and motor sites. Frontal montages avoid the problem entirely. Ask us about optode design before you assume a whole head montage will work on your subject population.
Can I record more than one participant, or add EEG?
Both. MultiBrite Dual and Tetra configurations extend coverage or run hyperscanning, and Brite Connect handles up to four devices. For larger groups there is Brite Connect Ultra, up to 30 devices on one screen. EEG and tES go in the same headcap as the fNIRS optodes.
Is the Brite available in Israel with local support?
Yes. NBT is the Israeli distributor for Artinis. We install, train and support here, Sunday to Thursday, on site when needed. We also distribute NIRx, so if the NIRSport2 is the better fit for your paradigm we will say so.
