What is the MUX Flow Switch?

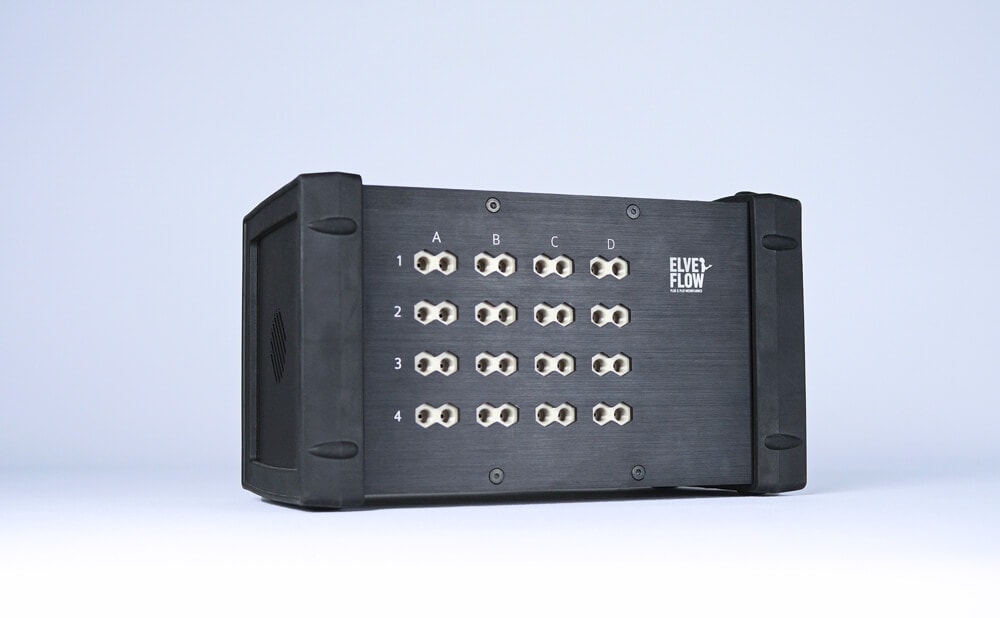

The MUX Flow Switch by Elveflow is a compact matrix that integrates from 4 to 16 ON/OFF microfluidic valves in a single instrument, with all the necessary electronics embedded. Paired with an OB1 pressure controller, it lets you switch upstream flow ON or OFF in just 20 ms — fast enough for sample injection, stop-flow protocols, and complex multi-reagent automation.

The MUX Flow Switch uses Elveflow's proprietary ROCKER® valve technology, which limits flow displacement to under 10 nL per actuation. This makes it ideal for low-volume injections (sample volumes from 50 µL), pre-chip mixing, and any application where dead volume must stay minimal.

Key Features

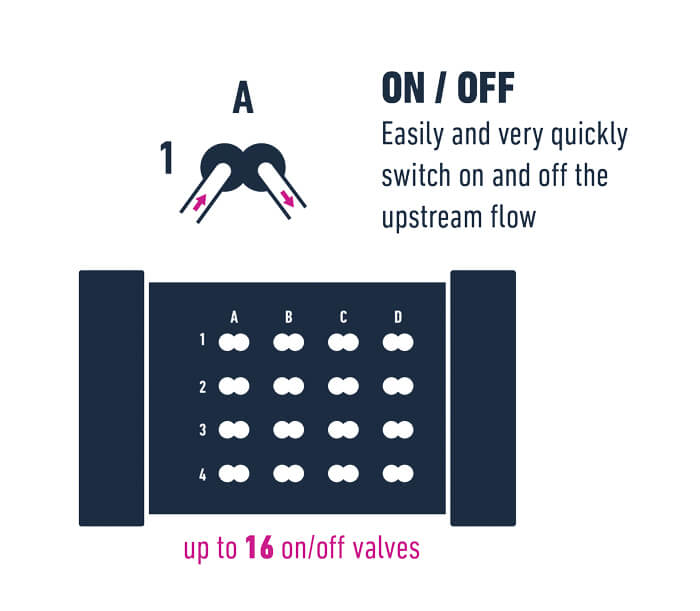

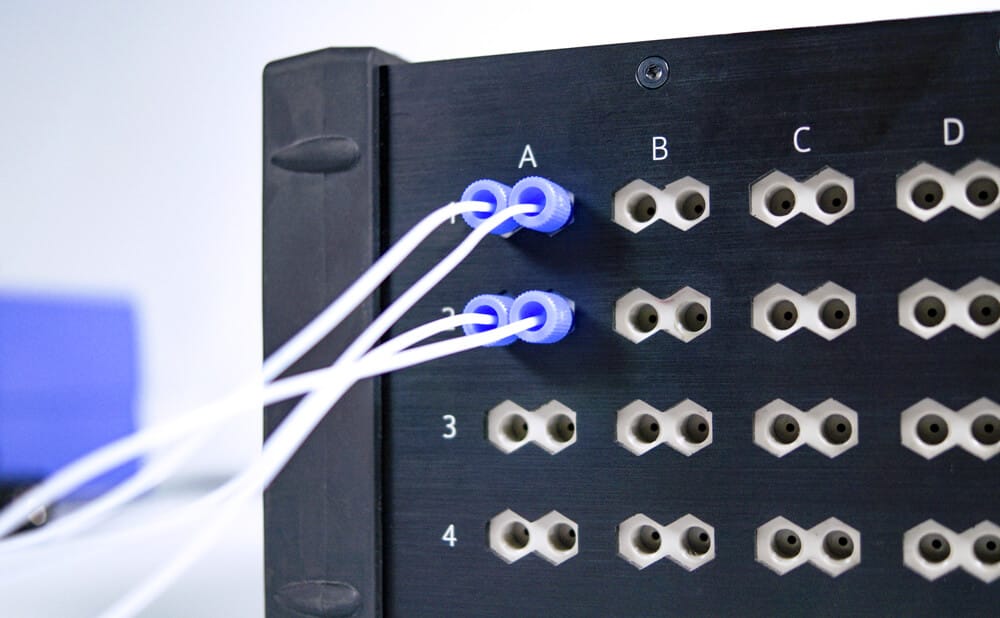

• Up to 16 ON/OFF valves: Scale from 4 to 16 PEEK valves in a single, compact instrument.
• Fast 20 ms switching: ROCKER® valve technology with under 10 nL flow displacement per actuation.
• Profile editor: Program subtle valve patterns and loop sequences via Elveflow's ESI software.
• Trigger I/O: TTL trigger in/out for synchronisation with OB1, microscopes, shutters, or any third-party instrument.
• Clean PEEK fluidics: No backflow, low carryover, supports up to 2.5 bar.

Applications

The MUX Flow Switch is an invaluable toolbox for microfluidic labs needing automated fluid handling. Common use cases include:

• Successive simple injection of reagents into a microfluidic chip.
• Injection loops with controlled, repeatable injection volumes.
• Pre-chip mixing zones — combine streams before they enter the chip.
• Capillary tube solution storage for delayed reagent delivery.
• Stop flow protocols — quickly halt flow for imaging or reaction freezes.
• Liquid redirection from one chip or output to another.
