IBD-82406

Cell Neurobiology & Imaging

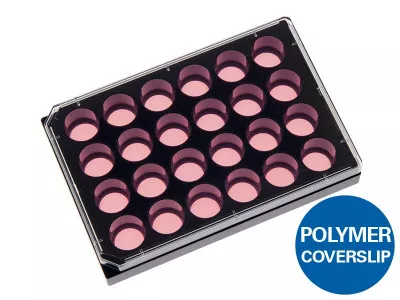

ibidi µ-Plate 24 Well Black

A black 24 well plate with flat and clear bottom for high throughput applications in cell-based assays.

ibidi µ-Plate 24 Well Black

Applications

Fluorescence-based imaging of living or fixed cells
High throughput screening (HTS) in cell culture
Wound healing experiments with ibidi Culture-Inserts
Large-scale transfection experiments

‍

Technical Features

Standard format, and dimensions of 85.5 x 127.5 mm (meets ANSI/SLAS (SBS) Standards)
24 round wells with standard numbering
Compatible with automation equipment
Excellent inner well flatness and whole plate flatness
Suitable for fluorescence scanners
High-quality plastic bottom, which is compatible with solvents for staining and fixation, and also with immersion oil
Sterile, single packaging

‍

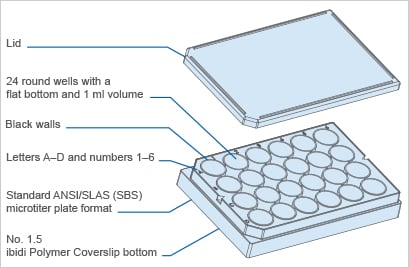

Technical Drawing

Technical drawings and details are available in the Instructions (PDF).

‍

Specifications

Length / width	127.8 / 85.5 mm
Height with / without lid	22.5 / 20.1 mm
Well-to-well distance	18.9 mm
Well clearance	1.2 mm
Single well diameter	16.3 mm
Single well depth	18.6 mm
Volume per well	1 ml
Growth area per well	1.90 cm²
Coating area per well using 1 ml	4.30 cm²
Inner well flatness	± 10 µm
Whole plate flatness	± 25 µm
Bottom: ibidi Polymer Coverslip

plate 24 well — plate 24 well

‍

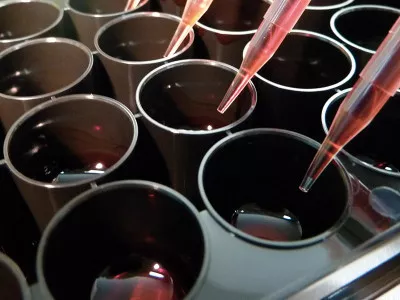

plate 24 well 1 — plate 24 well 1

‍

‍

Cell Cultivation and Imaging

Migration Assays

Instruction of Use

ibidi publications
