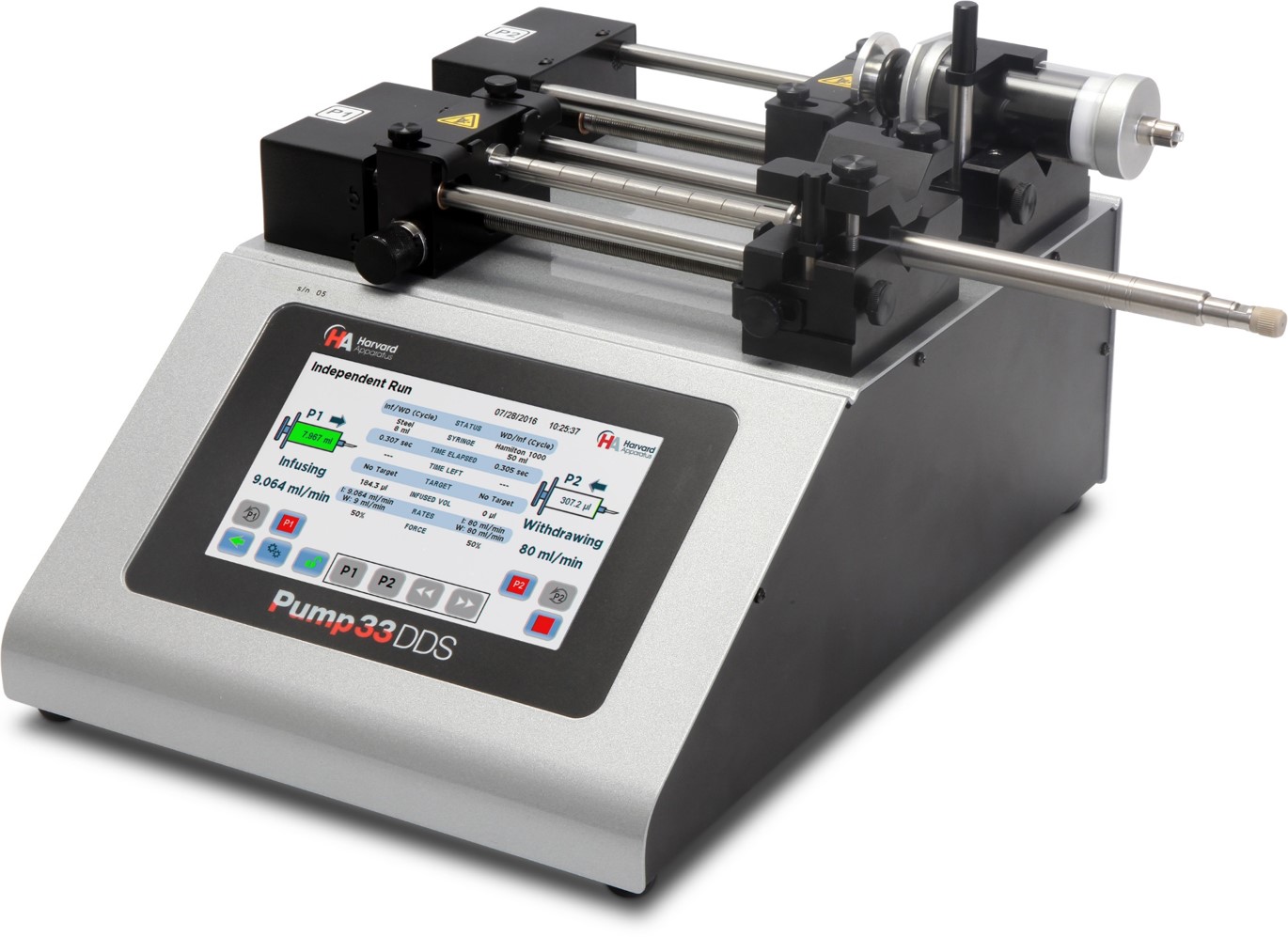

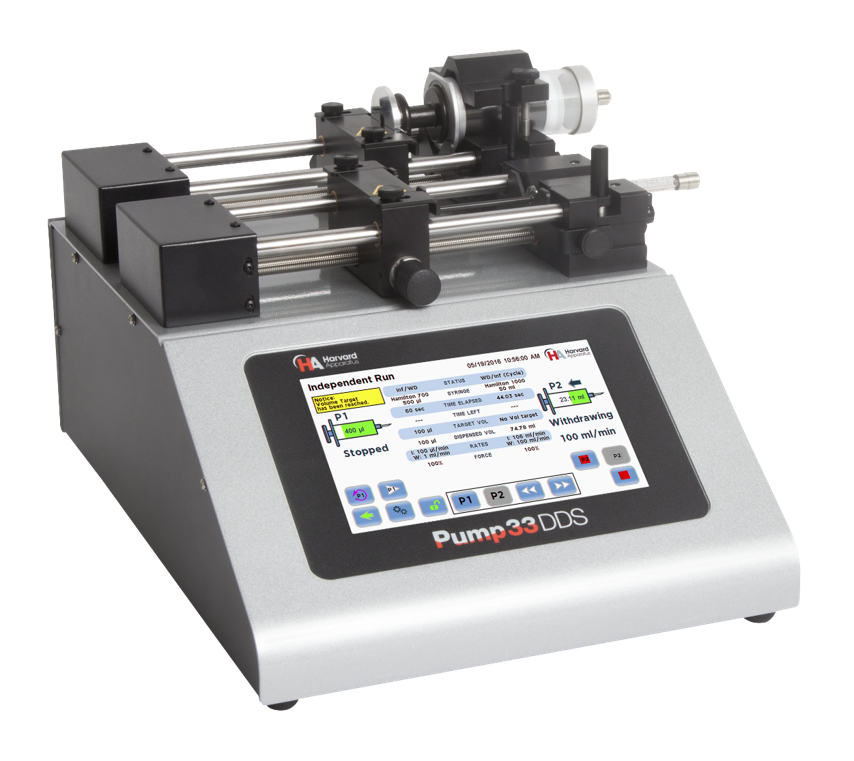

Harvard Apparatus Pump 33 DDS™ Dual Drive System Syringe Pump
The Harvard Apparatus Pump 33 DDS™ is a dual-drive syringe pump with two fully independent stepper motors enabling simultaneous bidirectional operation from 1.02 pl/min to 106 ml/min per channel. Purpose-built for push-pull microdialysis and dual-reagent experiments, it eliminates the need for two separate pumps while offering full independent programmability per channel.
What is the Harvard Apparatus Pump 33 DDS™?
The Harvard Apparatus Pump 33 DDS™ (Dual Drive System) is a uniquely engineered dual-channel syringe pump that provides two completely independent, synchronized drive mechanisms within a single compact housing. Unlike conventional dual-syringe pumps that share a single drive motor, the Pump 33 DDS allows each channel to operate independently with its own flow rate, volume target, and direction — enabling advanced infusion/withdrawal paradigms impossible with single-drive systems.
With flow rates spanning from 1.02 pl/min to 106 ml/min per channel and a 7" LCD touchscreen interface, the Pump 33 DDS is designed for demanding applications including push-pull microdialysis, dual-reagent mixing, gradient generation, and split-flow microfluidic experiments in both animal and cell-based research.
Key Features
- Truly Independent Dual Drive System: Each of the two channels has its own independent stepper motor and drive mechanism, allowing simultaneous infusion at different flow rates, independent withdrawal, or perfectly synchronized bidirectional operation.
- Ultra-Wide Flow Range: Delivers flow rates from 1.02 pl/min to 106 ml/min per channel, supporting ultra-precise microfluidic delivery through high-volume physiological perfusion in a single instrument.

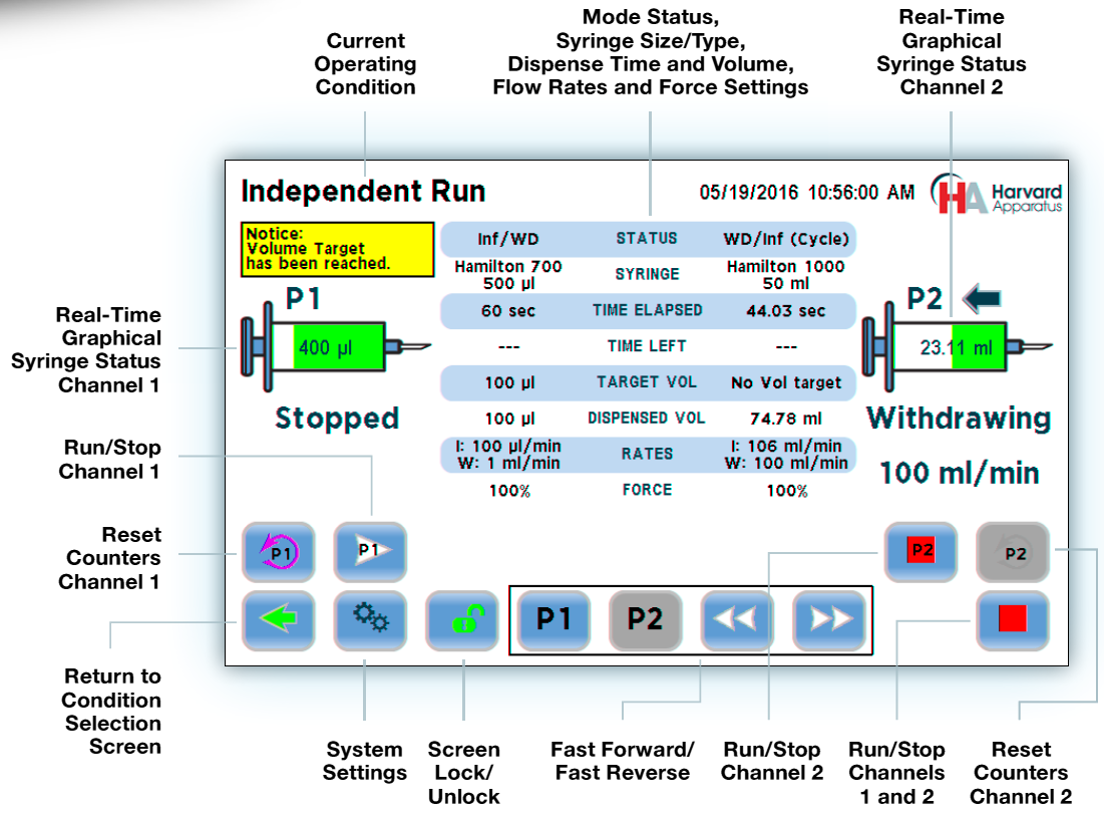

- 7" Color LCD Touchscreen: Large, intuitive touchscreen with channel-by-channel control, enabling independent programming of each drive motor from one unified screen.
- Push-Pull Microdialysis Optimized: The independent dual drives are specifically suited for push-pull perfusion — infusing artificial CSF while simultaneously withdrawing dialysate at matched flow rates, eliminating the need for two separate pumps.
- Advanced Per-Channel Programming: Supports complex multi-step methods with ramps, I/O triggers, and gradient programming per channel, all storable on-device.
- Daisy-Chain Compatible: RS-485 interface supports multi-pump daisy chaining for integration with larger automated experimental systems.
.webp)
Technical Specifications
| Catalog Number | 70-3333 |
| Drive Configuration | Dual independent drive motors |
| Flow Rate Minimum | 1.02 pl/min per channel |
| Flow Rate Maximum | 106 ml/min per channel |
| Operation Mode | Infuse and Withdraw (independent per channel) |
| Display | 7" LCD Color Touchscreen |
| Connectivity | USB, RS-485 (daisy chain), Digital I/O |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Certifications | CE, ETL (UL, CSA), WEEE, EU RoHS |
Applications
- Push-pull microdialysis for in vivo neurochemical sampling
- Dual-reagent microfluidic mixing and gradient generation
- Independent dual-channel drug co-infusion studies
- Organ perfusion with simultaneous input/output flow measurement
- Cell culture perfusion with independent media and waste channels
Animal Infusion
Explore All ProductsHarvard Apparatus Pump 33 DDS Publications
The Pump 33 DDS Dual Drive System is used in push-pull microdialysis and dual-reagent mixing studies, valued for its independent channel control enabling simultaneous infusion and withdrawal at precisely matched flow rates.
What is the Harvard Apparatus Pump 33 DDS™ Dual Drive System Syringe Pump and what is it used for?
The Harvard Apparatus Pump 33 DDS™ is a dual-drive syringe pump with two fully independent stepper motors enabling simultaneous bidirectional operation from 1.02 pl/min to 106 ml/min per channel. Purp.
What research applications is the Harvard Apparatus Pump 33 DDS™ Dual Drive System Syringe Pump suited for?
The Harvard Apparatus Pump 33 DDS™ Dual Drive System Syringe Pump is suited for researchers in neuroscience, behavioral science, physiology, and related life science fields. It is designed to support experimental workflows that require reliable, high-quality data acquisition and analysis.
What are the key technical features of the Harvard Apparatus Pump 33 DDS™ Dual Drive System Syringe Pump?
The Harvard Apparatus Pump 33 DDS™ Dual Drive System Syringe Pump (catalog number: 70-3333) is engineered for precision performance in laboratory settings. It offers user-friendly operation, robust construction, and compatibility with standard laboratory workflows to maximize experimental efficiency and reproducibility.
Is the Harvard Apparatus Pump 33 DDS™ Dual Drive System Syringe Pump available in Israel with local support?
Yes. NBT Ltd is the exclusive distributor of this product in Israel. Our team of scientific specialists provides full local support including installation, application training, and ongoing technical assistance for the Harvard Apparatus Pump 33 DDS™ Dual Drive System Syringe Pump.
What accessories or systems is the Harvard Apparatus Pump 33 DDS™ Dual Drive System Syringe Pump compatible with?
The Harvard Apparatus Pump 33 DDS™ Dual Drive System Syringe Pump is designed to integrate seamlessly with complementary laboratory instruments and software used in its application domain. NBT Ltd can advise on compatible accessories, consumables, and system configurations to meet your specific research needs.
