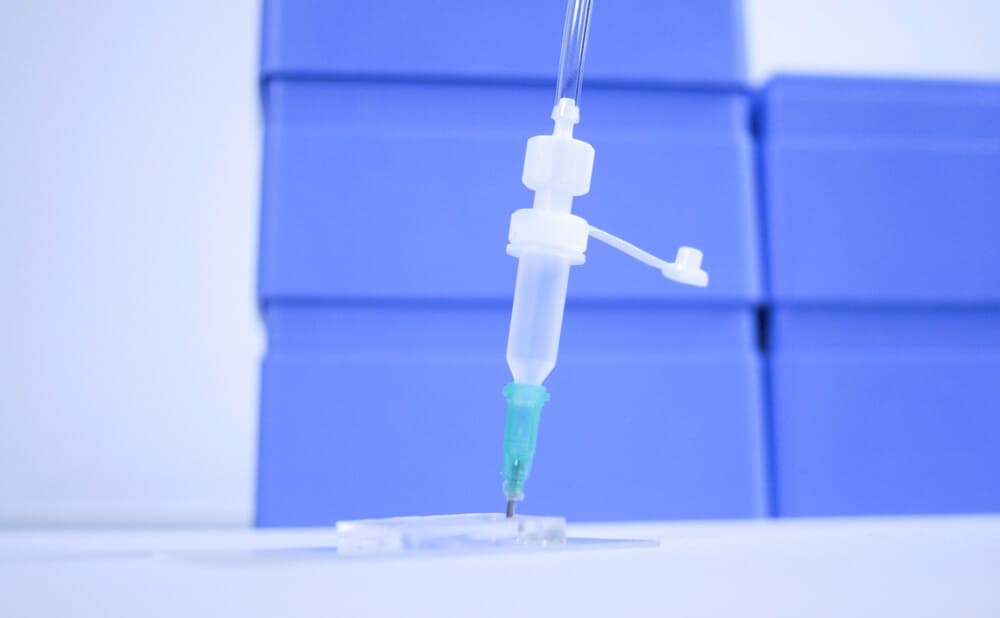

The Reservoir XXS On Chip is an 800 µL microfluidic reservoir vial that plugs directly into the chip's inlet — no tubing required — eliminating dead volume and saving every microlitre of precious reagent. It is the smallest reservoir in Elveflow's range, used with a pressure source to push liquid straight through the chip.

The Reservoir XXS On Chip is suited for antibody and fluorophore delivery in immunofluorescence and FISH, small-batch reagent screening, single-cell sample injection, drug screening with limited compound availability, and any workflow where sample volume conservation is critical.

The Reservoir XXS On Chip (catalog: RESERVOIR-XXS) holds 800 µL in a polypropylene tube with male Luer Lock cap, female Luer Slip adapter, and an o-ring seal. Each kit includes 5 tubes, 5 o-rings, 5 blunt 23G 1/2" needle tips, and 5 Luer Lock barb connectors. The reservoir plugs directly into the chip with no tubing and no dead volume.

Yes. NBT Ltd distributes Elveflow microfluidic products in Israel. Our team provides local support and application guidance for the Reservoir XXS On Chip and the complete Elveflow microfluidic automation ecosystem.

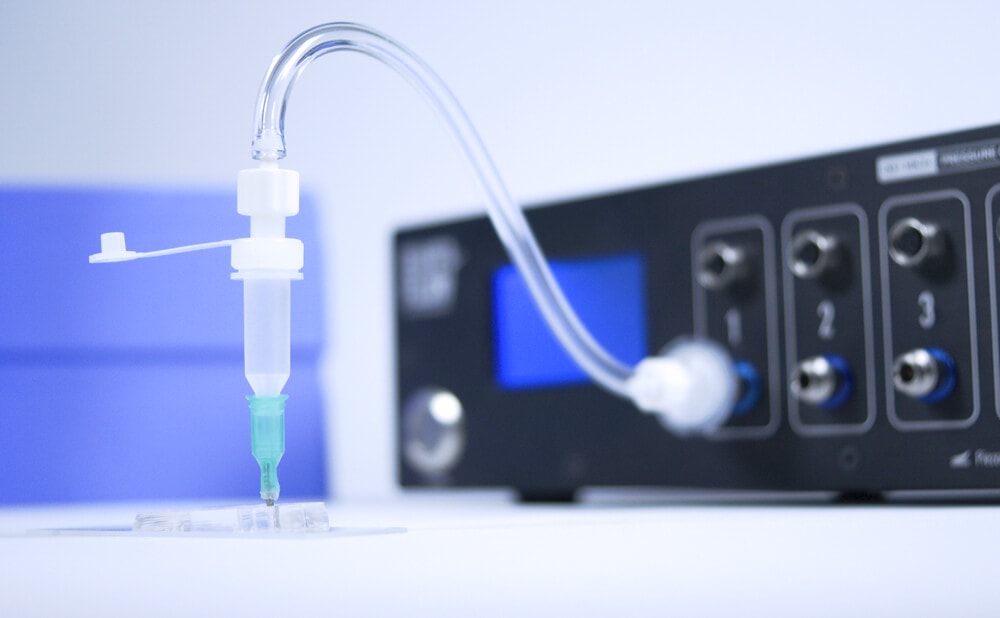

The Reservoir XXS On Chip is pressurised by any Elveflow pressure source (OB1, Air Compressor, or Pressure Source) and plugs directly into the microfluidic chip's inlet via its Luer Lock cap and supplied blunt needle/barb connectors — eliminating the tubing usually needed between reservoir and chip and removing all dead volume from the line.
