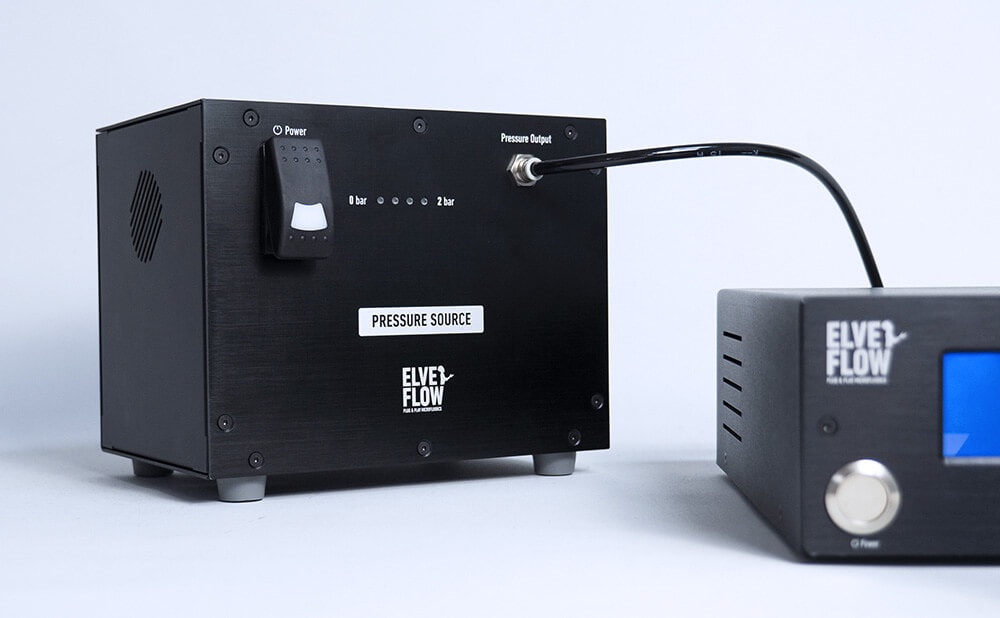

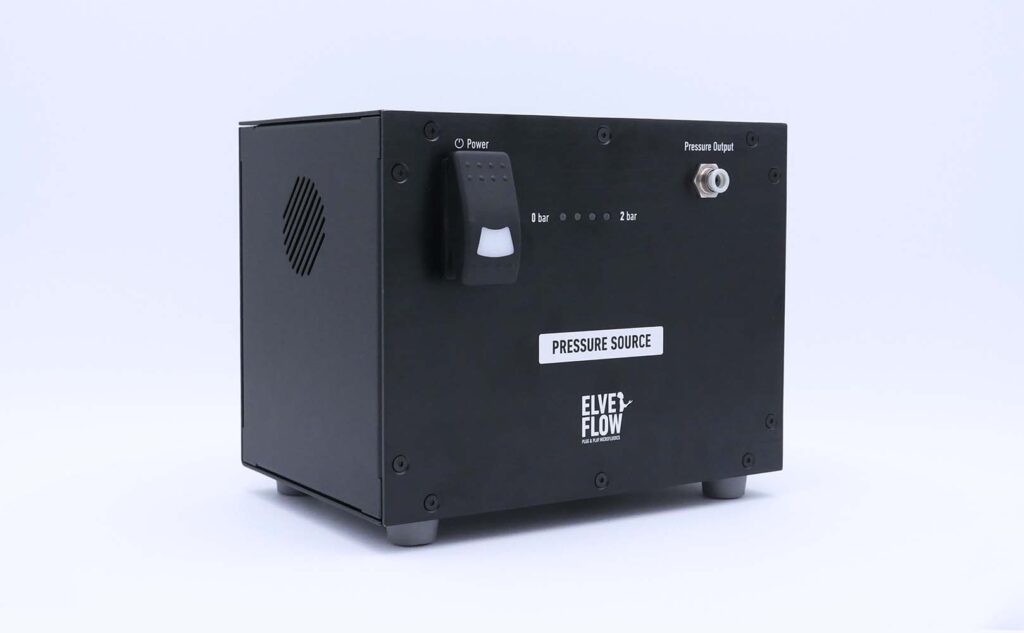

The Elveflow Pressure Source is a compact 2 kg, 2 bar laboratory pressure supply with a 350 mL integrated tank, designed as a quiet (<54 dB) plug-and-play companion product for the OB1 0-200 mbar and 0-2000 mbar pressure channels — a lighter, quieter alternative to the Air Compressor when 8 bar output isn't required.

The Elveflow Pressure Source is suited for standalone microfluidic benches without compressed-gas infrastructure, field or satellite labs needing a portable pressure source, quiet lab environments, pressure-driven cell perfusion and low-pressure microfluidic workflows, and as a backup pressure source for stability-critical experiments.

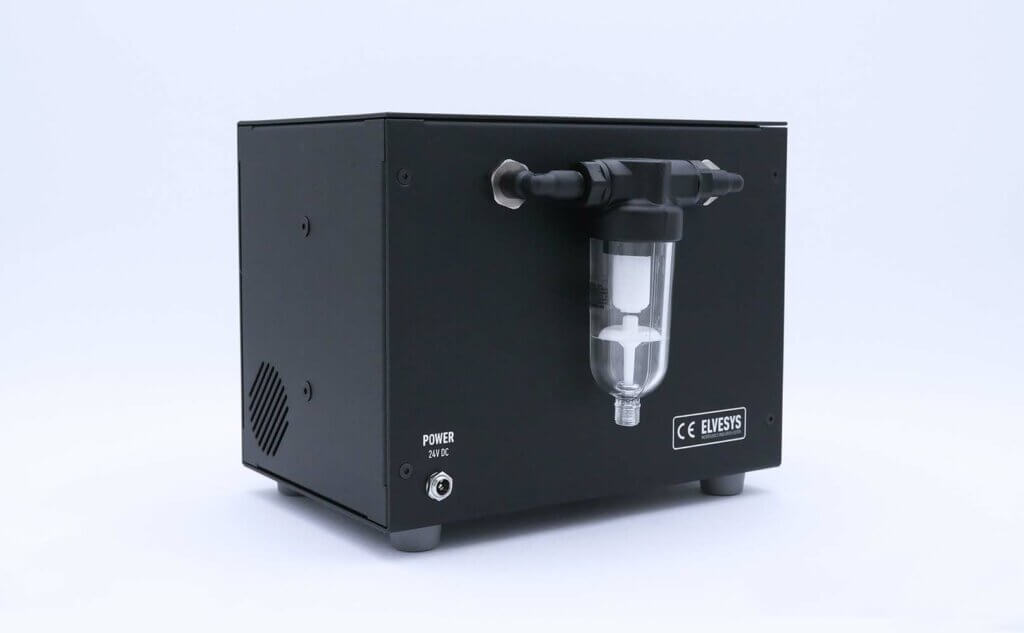

The Elveflow Pressure Source (catalog: PRESSURE-SOURCE) delivers 2 bar granted pressure (2.8 bar max) with 1.5 L/min flow, a 350 mL integrated oil-free tank, 40 µm filter, and a standard 6 mm push-in pneumatic connector. It runs on 24 V DC (100-240 VAC PSU included), weighs just 2 kg, and operates at less than 54 dB.

Yes. NBT Ltd distributes Elveflow microfluidic products in Israel. Our team provides local support and application guidance for the Elveflow Pressure Source and the complete Elveflow microfluidic automation ecosystem.

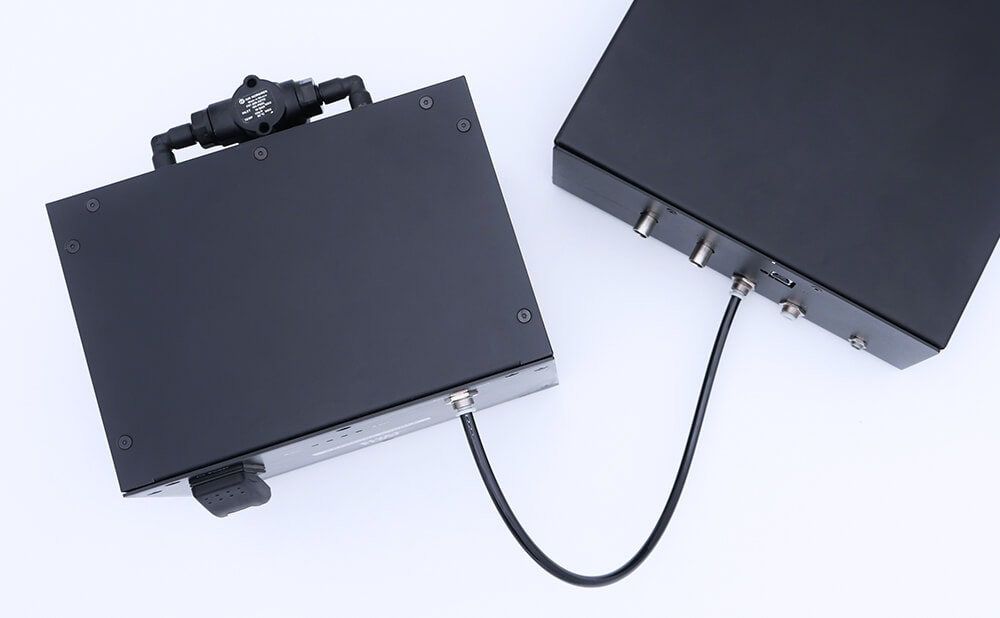

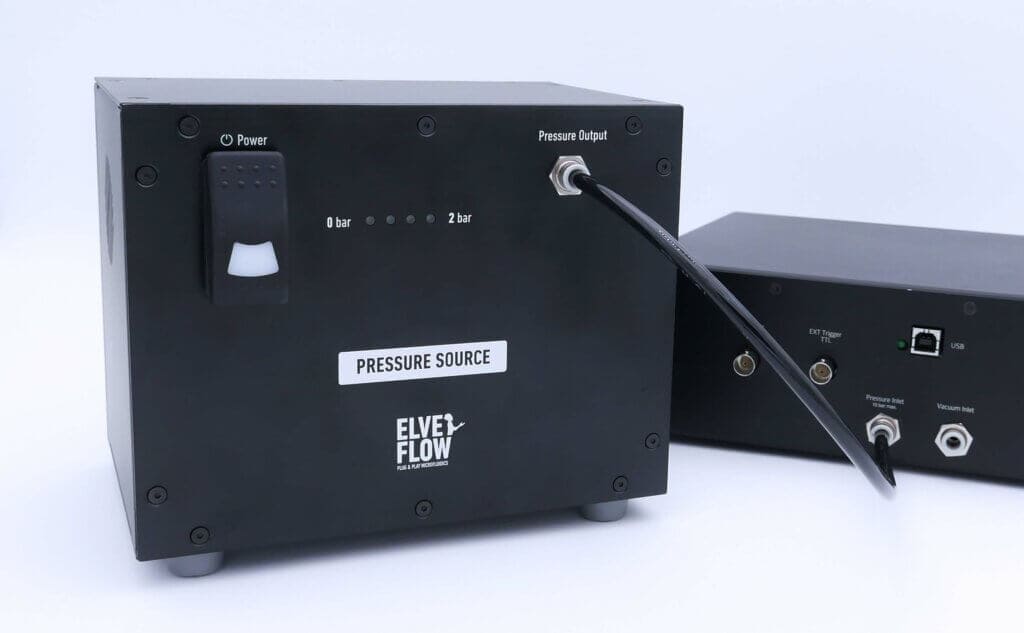

The Pressure Source connects directly to the supply port of the OB1 pressure controller via its 6 mm push-in connector. Its 2 bar steady output is the matched companion for OB1 0-200 mbar and 0-2000 mbar pressure channels, with a 40 µm filter ensuring clean air enters the regulator. For higher-pressure channels, use the full Air Compressor instead.
