The Manifold 13 Ports is an autoclavable PEEK splitter that lets you distribute or combine up to 12 microfluidic lines from a single inlet. It supports ¼-28 fittings for 1/16" OD tubing, with configurable 1-to-12 routing via the supplied plugs — the essential plumbing piece for parallel injection, sequential injection, and multi-reservoir pressure distribution.

The Manifold 13 Ports is suited for parallel injection from a single source to multiple chips, sequential injection coupled with the MUX Distribution Valve, multi-reservoir pressure distribution from a single OB1 channel, combining multiple flows onto a single chip inlet, and multi-line organ-on-chip platforms.

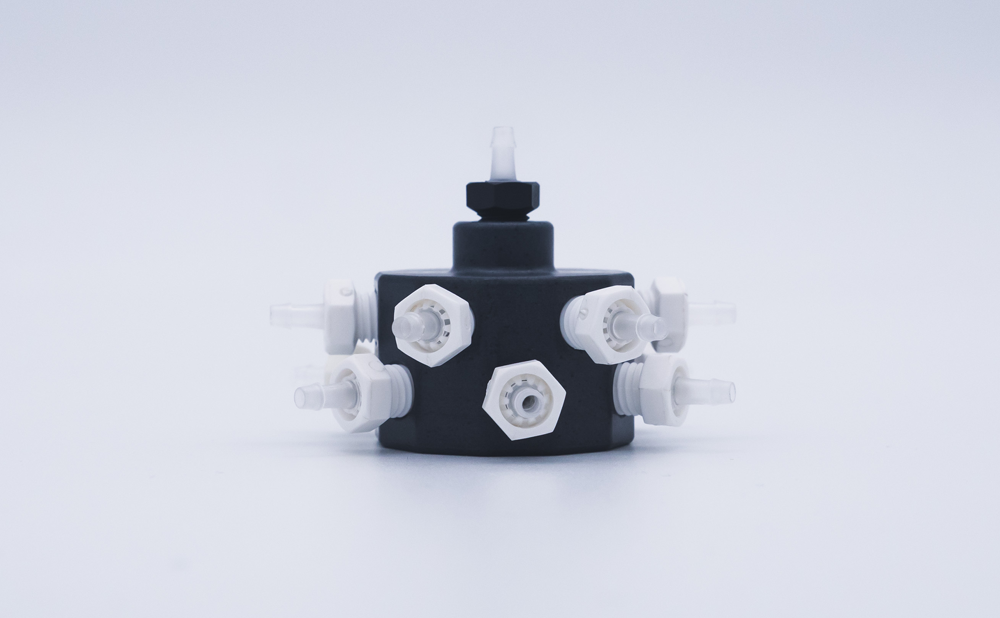

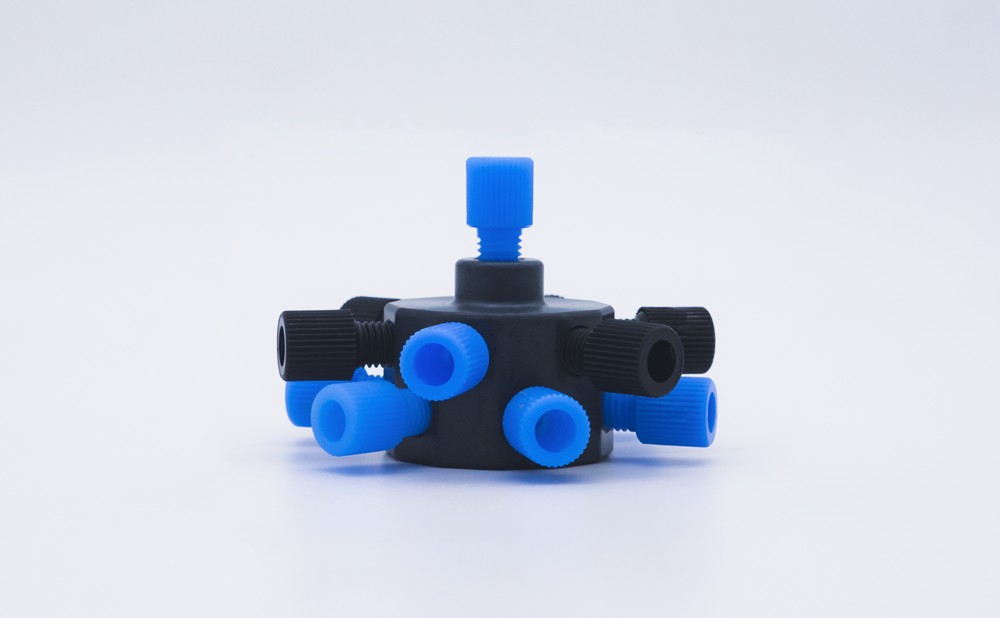

The Manifold 13 Ports (catalog: MANIFOLD-13) is constructed in autoclavable PEEK with 13 ports total (1 to 12 active configurable via the supplied ¼-28 threaded plugs). It accepts ¼-28 fittings for 1/16" OD microfluidic tubing and is compatible with both liquid and gas media. ¼-28 fittings and tubing are not included.

Yes. NBT Ltd distributes Elveflow microfluidic products in Israel. Our team provides local support and application guidance for the Manifold 13 Ports and the complete Elveflow microfluidic automation ecosystem.

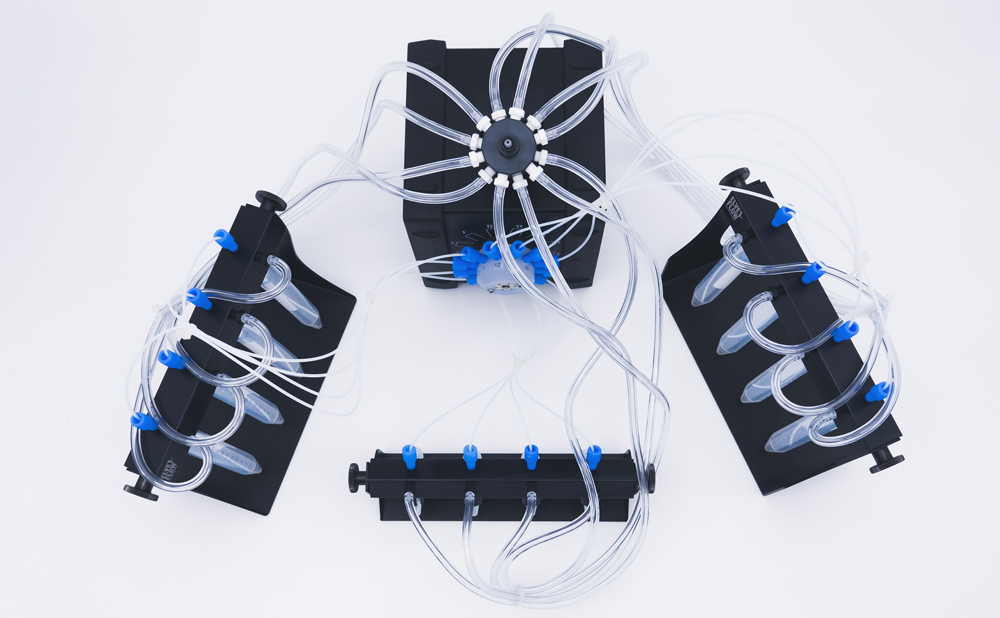

The Manifold 13 Ports is fully compatible with the standard ¼-28 fitting environment of every Elveflow microfluidic instrument. It connects directly to the OB1 pressure controller for multi-reservoir distribution, pairs with the MUX Distribution Valve for sequential injection setups, and is the standard splitter for any multi-line Elveflow workflow.
