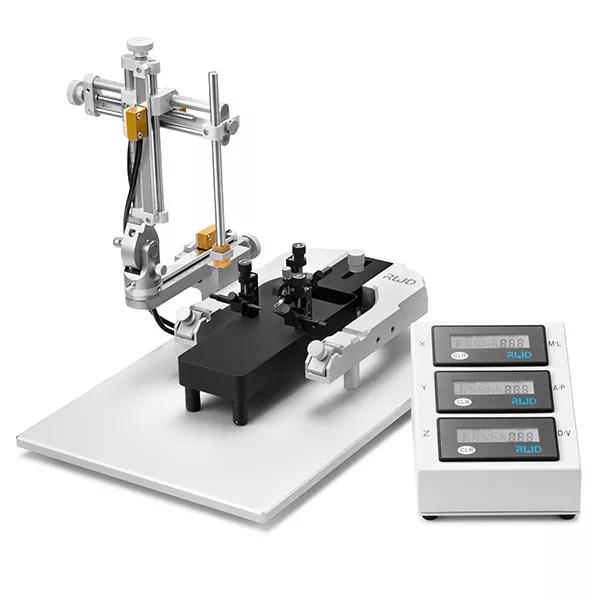

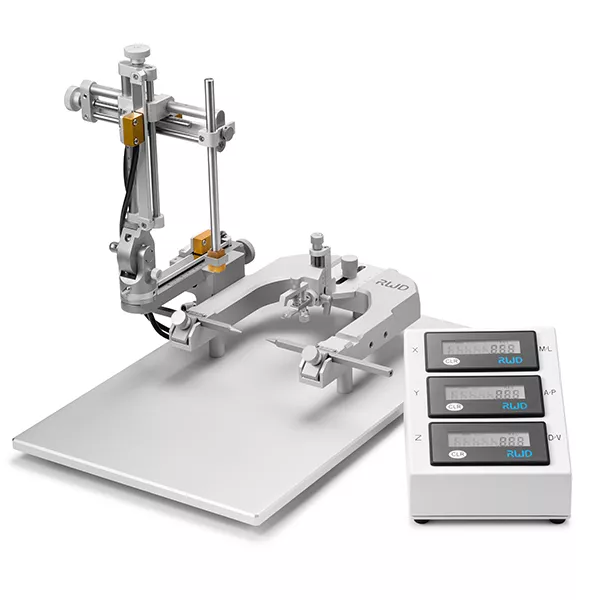

It includes 3-axes, left-hand manipulator arm, digital display module, adaptor, ear bars, and standard probe holder. Additional subassemblies are available including dual arm, other adaptors, and ear bars.

Technical Specifications

1. Adaptors available for rat, mouse, rabbit, guinea pig, etc.

2. LCD digital display, real-time shows displacement distance, accuracy 10μm.

3. One key to reset, no secondary readings and calculations.

4. Powered by AA battery, no electronic interference.

5. Working distance in each dimension: 80mm with precise alignment to 0.1mm resolution.

6. Vertical direction: 180° rotation and lock at any angle.

7. Horizontal direction: 360° rotation and lock at any angle.

8. Dual-lead screws ensure stable, accurate and smooth manipulation.

9. Accuracy and flexibility can be maintained at variable temperatures.

10. Extended base plate (400mm x 255mm) is applicable for a variety of animal sizes.

11. Unique anti-clockwise UP mark engraved in the knob prevents incorrect operation.

12. Vertical lock and fixing knob are separated to ensure accurate function at any angle.

13. Distance between knob and the U-shaped frame is 28mm to ensure precise lateral rotation operating space.

14. Laser engraved scales enable comfortable reading.

15. Curved nose clamp design secures the head of animals.

16. Ear bar locked plate pressing instead of clamping ensures more stability.

17. Syringe pump, micro camera and drill can be attached to instruments.
