Technical specification

  1. Adaptors available for rat, mouse, rabbit, guinea pig, etc.
  2. Y-axis slide design, longer moving range: ± 100mm, 1mm resolution. Optional AP Micro-driver, the resolution of Y-axis promoted to 50μm
  3. Working distance in X-axis and Z-axis dimension is 80 mm with precise alignment to 0.1mm resolution.
  4. Vertical direction: 180° rotation and lock at any angles.
  5. Horizontal direction: 360° rotation and lock at any angles.
  6. Dual-lead screws ensure stable, accurate and smooth manipulation.
  7. Accuracy and flexibility can be maintained at variable temperatures.
  8. Extended base plate (400mm x 255mm) is applicable for a variety of animal sizes.
  9. Unique anti-clockwise UP mark engraved in the knob prevents incorrect operation.
  10. Vertical lock and fixing knob are separated to ensure accurate function at any angle.
  11. Replace the U-frame, enlarge the operating space, more economical and reliable
  12. Laser engraved scales enable comfortable reading.
  13. Curved nose clamp design secures the head of animals.
  14. Ear bar locked plate pressing instead of clamping ensures more stability.
  15. Syringe pump, micro camera and drill can be attached to instruments.

Model Information

    SubassemblyModel Adaptor Ear bar Three-dimensional manipulator Holder Base plate

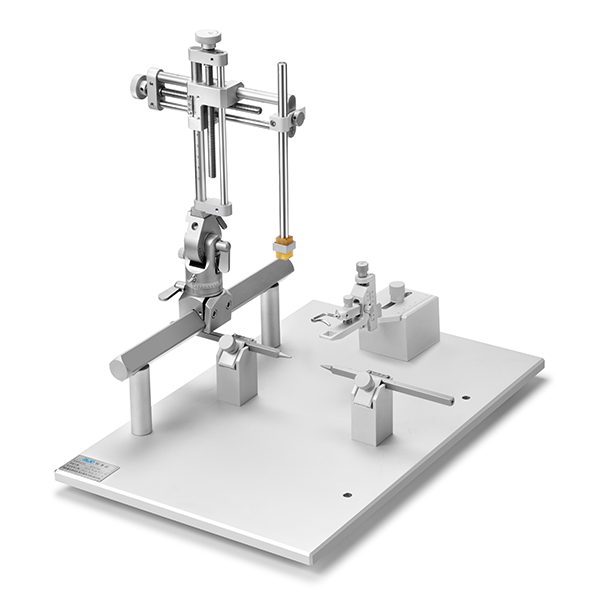

68506 68021 Rat 18° SGL-Left 68201 68864S

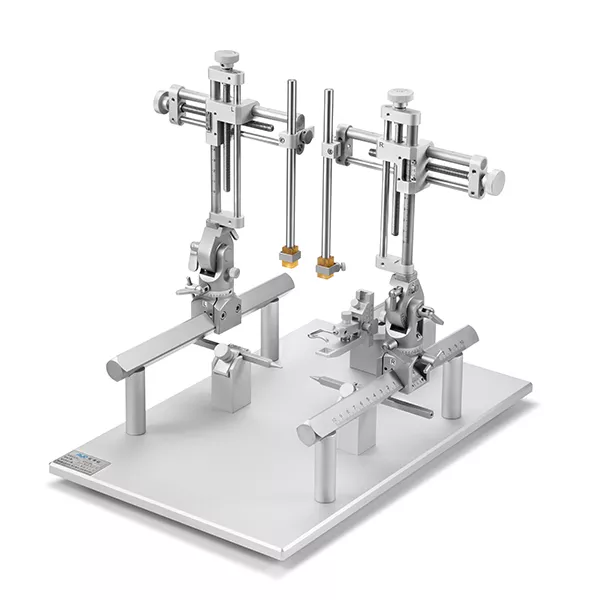

68509 68021 Rat 18° Dual 68201 68864S
68512 68021 Rat 18° Digital, SGL-Left 68201 68864S

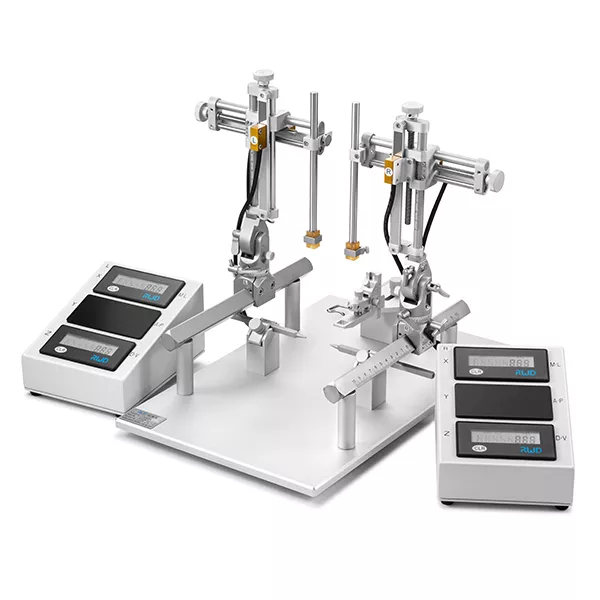

68515 68021 Rat 18° Digital, Dual 68201 68864S



Manufacturer

rwd

Learn more about Rail-mounted Rat Stereotaxic Instruments
