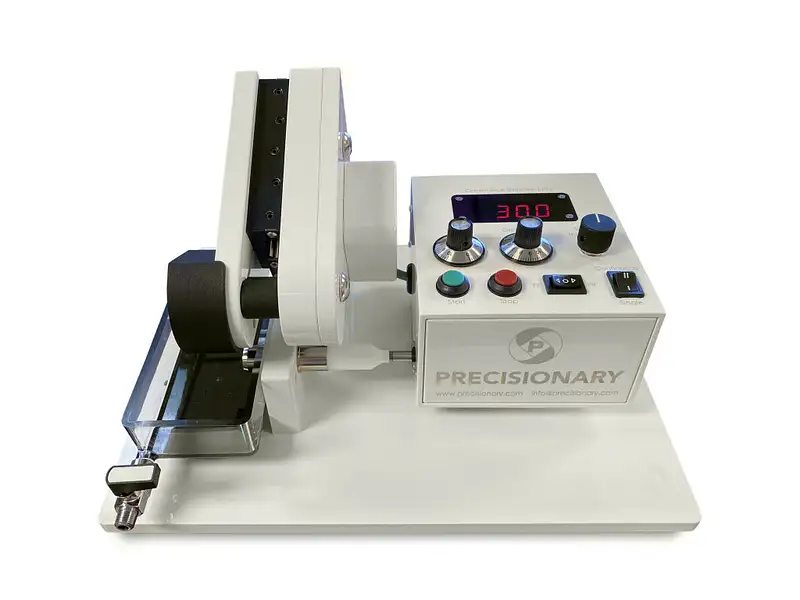

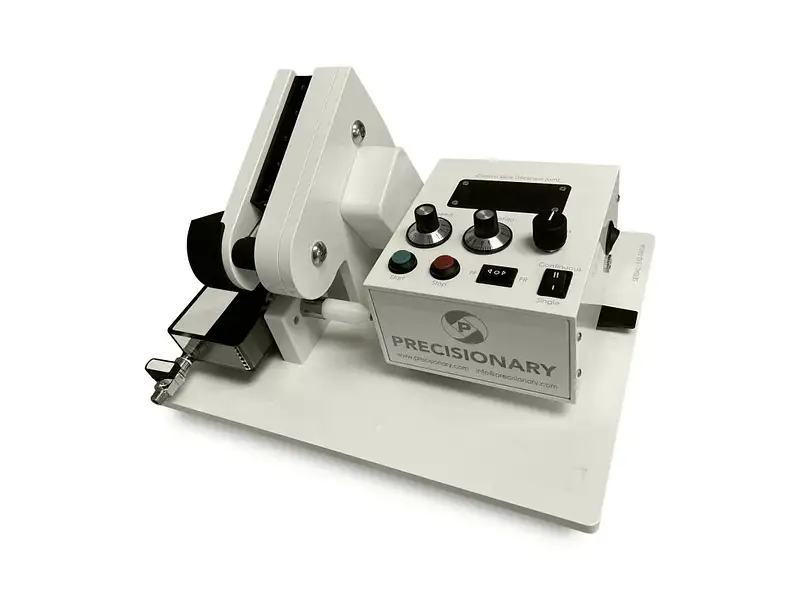

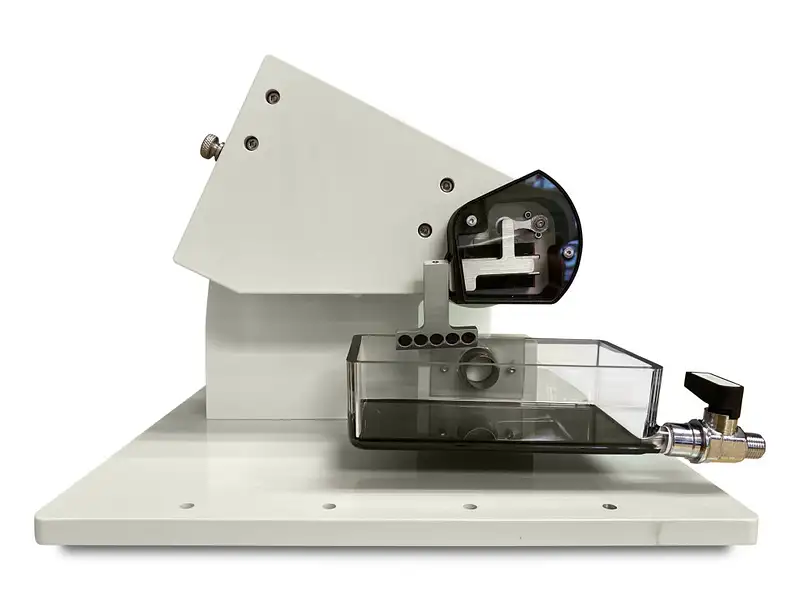

The Compresstome® VF-510-0Z is our newest vibrating microtome models. Designed by engineers with customer feedback, this tissue slicer is best used to create sections for electrophysiologyorganotypic culture (tumor slices), precision-cut tissue slices (like PCLS), and immunohistochemistry (IHC).

    • Cuts tissue slices from brain, heart, liver, lung, kidney, and more
    • Produces even, consistent slices (no more thick-and-thin sections)
    • Slices over 5x faster than other market vibrating microtomes
    • Patented compression technology and agarose embedding process eliminates chattermarks and maintain high live cell counts
    • Fully automated slicing!
    • Removable buffer tray for easy cleaning
    • Auto Zero-Z® technology reduces Z-axis deflection to <1 μm
    • Light footprint for increased portability

This Compresstome® model is equivalent to the Leica Vibratome 1200S.

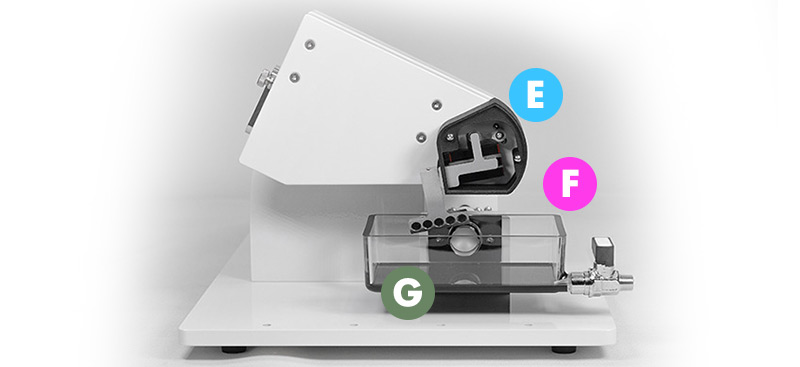

KEY FEATURES OF THE COMPRESSTOME® VF-510-0Z

The VF-510-0Z is designed by our engineers with a more durable vibrating head unit and movable control box for rapid loading of samples for sectioning. Check out its key features:

PROBLEMS WITH OTHER VIBRATOMES

There are many different types of tissue slicers on the market, but they don’t operate the way that the Compresstome® does. Other market vibratomes will have a flat stage where you glue your tissue sample, with a cutting blade that approaches horizontally. However, the blade can easily push your tissue sample and squish, tilt, and compress it—all of these effects may damage cells and tissue architecture.

PROBLEMS WITH OTHER VIBRATOMES

BENEFITS OF SLIGHT COMPRESSION FOR TISSUE SLICING

When using the Compresstome®, you will embed your tissue in agarose inside a specimen tube. The open end of the specimen tube has a slightly tapered edge. As tissue and agarose cross the edge of the tube, it gets slightly compressed. This compression helps stabilize the tissue during sectioning, and allows the Compresstome® to section at speeds up to 5x faster than other market vibrating microtomes. Overall, the Compresstome® provides a significant improvement on the health and longevity of live slices, and virtually eliminates chattermarks in fixed tissue slices.

Benefits of compression diagram

Don’t worry–The agarose embedding does not decrease cell viability. Rather, it enhances cell survival because of tissue stability. The agarose solution is quickly cooled down with a chilling block during sample preparation. With the Compresstome®, your tissue can be sectioned faster because of the agarose-induced stability. As a result, cells are never without oxygenation for a long time, and the added stability of the compression significantly reduces any blade damage.

OWNLOAD AUTO ZERO-Z® EXPLANATIONS

WHAT IS AUTO ZERO-Z® TECHNOLOGY? HOW DOES IT BENEFIT TISSUE SLICING?

Compresstome® slicer models marked with “-0Z” mean that the model has our patented Auto Zero-Z® technology. These vibrating heads are precisely aligned to eliminate vibrations in the Z-axis. Auto Zero-Z® technology helps reduce damage to surface cells on live tissue samples, and further reduce chattermarks on thin sections for improved imaging results.

AUTO ZERO-Z TECHNOLOGY
Equivalent to the vibratome Vibrocheck, but you don’t have to calibrate each time you cut which saves you time. Auto Zero-Z® is also included in all of our Compresstome® vibrating microtomes, so it’s no additional cost.
