MindWare Mobile Impedance Cardiograph
Full spectrum recording with a single device. Collect a wide array of physiological signals including EKG, PPG, GSC, cardiac impedance, EMG, respiration, and more.
Overview
The MindWare Mobile Impedance Cardiograph is unparalleled for lab based and real world monitoring of autonomic balance, cardiac impedance, respiratory measurements and activity.
- Monitor: Mental Workload, Parasympathetic & Sympathetic Measures, Respiration, Motion, and Muscle Activity
- Wide Range of Study: Psychophysiology, Stress & Health, Behavior, Children Studies, Performance, Neuromarketing, Psychology, Psychobiology, and more
- Signal Collection: EKG, GSR, EMG, Z0, dZ/dt, Respiratory, 3 axis accelerometry
.webp)
Specifications
Applications – ECG, EMG, EOG, GSR, Cardiac Impedance, Piezo Respiration Sensors, Signal recording from other instruments
Channels – Up to 8 Channels (2 Bio Channels, Z0, dZ/dt, GSC, Accelerometry)
Storage – SDHC Card or PC over WiFi

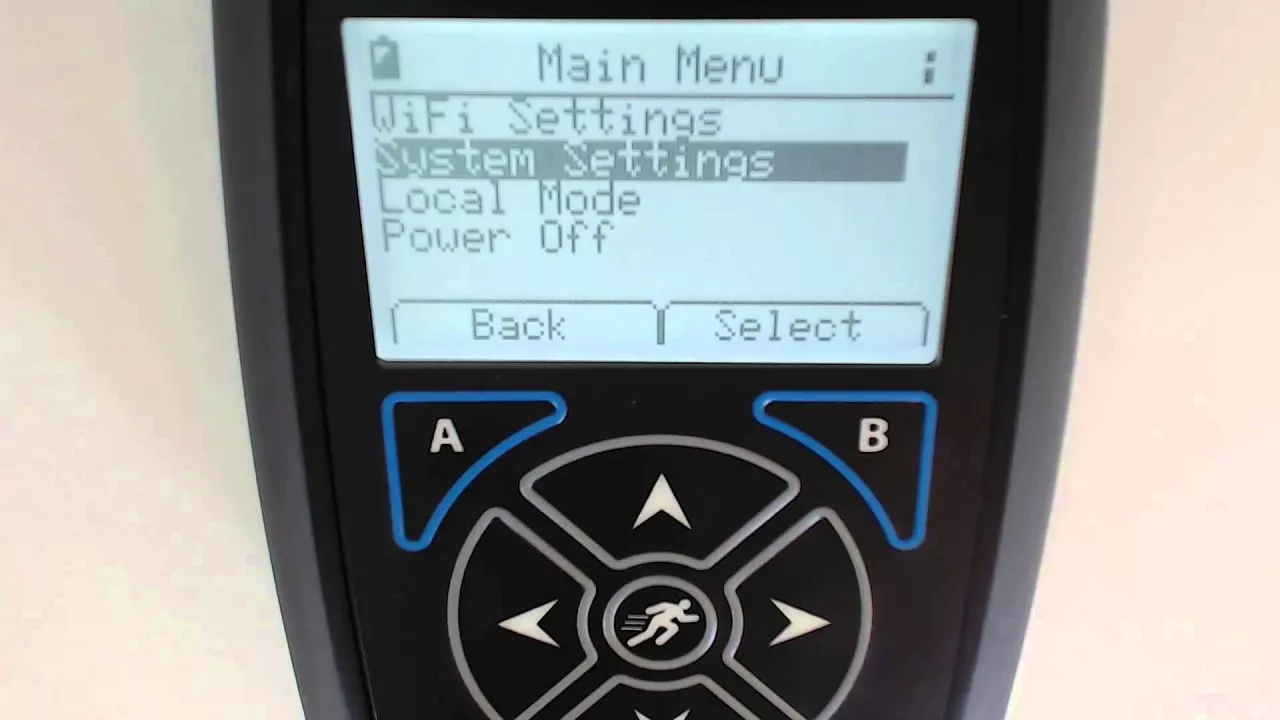

Device Interface – Screen
Power and Acquisition Control – Local to Device when using SD card or on PC when over WiFi
Event Marking Buttons – 2 in local mode
Analog Sampling Resolution – 24-bit
Accelerometer Resolution – 16-bit
Z0 Max Sample Rate – 500 Hz
SCL Max Sample Rate – 500 HZ
dZ/dt Sample Rate – 500 Hz
dZ/dt Derivative – Continuous
Base Battery Life – 18 Hrs+ local mode, 6 Hrs+ WiFi mode
Maximum Continuous Acquisition – 48 Hrs+
Size – 117 x 79 x 47 mm
Weight with Battery and Leads – 370g
Features
- High performance and small form factor
- Collects EKG, GSC, EMG, Z0, dZ/dt, and respiratory signals
- Local-mode recording to SD card
- Real time multi-unit synchronized wireless data transmission
- Seamless integration with all MindWare hardware and software
- Native 24 hour run time capability
- Built-in 3-axis accelerometer
- Simple electrode wire interface
- Built-in subject response buttons for event marking
Developmental research
Explore All ProductsBehavioral research
Explore All ProductsLearn more about MindWare Mobile Impedance Cardiograph
Academic publications and research studies utilizing the MindWare Mobile Impedance Cardiograph for physiological measurement, sourced from Google Scholar.
What is the MindWare Mobile Impedance Cardiograph and what is it used for?
The MindWare Mobile Impedance Cardiograph is Full spectrum recording with a single device. Collect a wide array of physiological signals including EKG, PPG, GSC, cardiac impedance, EMG, respiration, and more.
What research applications is the MindWare Mobile Impedance Cardiograph suited for?
The MindWare Mobile Impedance Cardiograph is suited for researchers in neuroscience, behavioral science, physiology, and related life science fields. It is designed to support experimental workflows that require reliable, high-quality data acquisition and analysis.
What are the key technical features of the MindWare Mobile Impedance Cardiograph?
The MindWare Mobile Impedance Cardiograph (catalog number: MND-50-2303-00) is engineered for precision performance in laboratory settings. It offers user-friendly operation, robust construction, and compatibility with standard laboratory workflows to maximize experimental efficiency and reproducibility.
Is the MindWare Mobile Impedance Cardiograph available in Israel with local support?
Yes. NBT Ltd is the exclusive distributor of this product in Israel. Our team of scientific specialists provides full local support including installation, application training, and ongoing technical assistance for the MindWare Mobile Impedance Cardiograph.
What accessories or systems is the MindWare Mobile Impedance Cardiograph compatible with?
The MindWare Mobile Impedance Cardiograph is designed to integrate seamlessly with complementary laboratory instruments and software used in its application domain. NBT Ltd can advise on compatible accessories, consumables, and system configurations to meet your specific research needs.
