Microdrill – The high speed drill for stereotaxic use
The high speed drill is designed for opening the skull in stereotaxic surgery, to implant electrode, cannula, and microdialysis probes, etc. This drill is easy to handle and operate.
What is the RWD Microdrill?

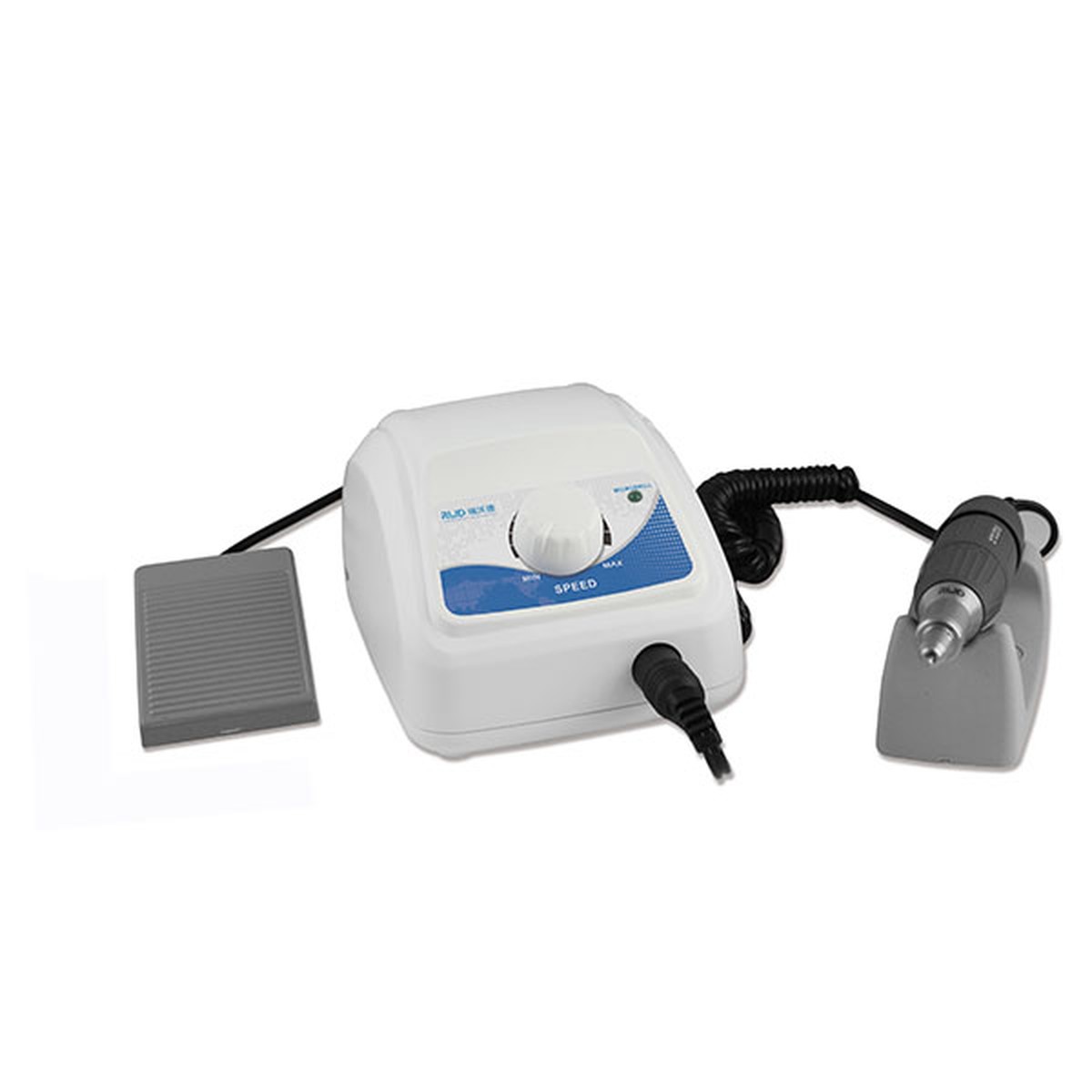

The RWD Microdrill (Cat. 78001) is a compact, high-speed drill designed specifically for stereotaxic surgery in small laboratory animals. It is used to open the skull with precision to allow implantation of electrodes, cannulas, and microdialysis probes. The drill connects to the power supply unit, making drilling faster, simpler, and more controlled compared to manual burring. It can be mounted directly onto the stereotaxic instrument arm via the dedicated Microdrill Holder (Cat. 68605), enabling manipulator-guided, hands-free drilling at a precise stereotaxic coordinate.
Key Features
- High Speed — Up to 38,000 rpm: The continuously adjustable speed enables fast skull penetration as well as slow, controlled grinding — adapting to bone thickness and the researcher's technique.
- Forward and Reverse Rotation: Bidirectional rotation allows the drill bit to be both advanced into the skull and retracted cleanly, reducing the risk of the bit binding or pulling bone fragments.
- Manual or Foot Pedal Control: Two control modes give researchers the flexibility to operate the drill with one hand while stabilizing the animal with the other, or to keep both hands free using the foot pedal.
- Stereotaxic Mount Compatible: Attaches to the stereotaxic instrument via the Microdrill Holder (Cat. 68605), enabling precise, coordinate-guided drilling without holding the drill by hand.
- Wide Range of Drill Bits: Round tip and flat tip drill bits are available in diameters from 0.5 mm to 2.3 mm (sold separately), covering all common craniotomy hole sizes for rodent stereotaxic work.
.webp)
Technical Specifications
| Catalog Number | RWD-78001 (drill only; bits not included) |
| Maximum Speed | 38,000 rpm |
| Speed Control | Continuously adjustable, 0–38,000 rpm |
| Rotation Direction | Forward or reverse |
| Control Modes | Manual or foot pedal |
| Drill Bit Diameter Range | 0.5–2.3 mm (round tip and flat tip variants, sold separately) |
| Stereotaxic Mounting | Via Microdrill Holder (Cat. 68605) |
Applications
- Craniotomy for stereotaxic electrode and cannula implantation
- Skull drilling for microdialysis probe insertion
- Cranial window preparation for imaging experiments
- Bone grinding and skull preparation during stereotaxic surgery
Micro-Surgery
Explore All ProductsRWD Publications
RWD Life Science stereotaxic instruments and surgical accessories are used extensively in rodent neuroscience research. Their cost-effective, high-quality platforms support stereotaxic surgeries, cannula implantations, and in vivo recordings in mice and rats across academic and pharmaceutical labs globally.
What is the Microdrill – The high speed drill for stereotaxic use and what is it used for?
The high speed drill is designed for opening the skull in stereotaxic surgery, to implant electrode, cannula, and microdialysis probes, etc. This drill is easy to handle and operate.
What research applications is the Microdrill – The high speed drill for stereotaxic use suited for?
The Microdrill – The high speed drill for stereotaxic use is suited for researchers in neuroscience, behavioral science, physiology, and related life science fields. It is designed to support experimental workflows that require reliable, high-quality data acquisition and analysis.
What are the key technical features of the Microdrill – The high speed drill for stereotaxic use?
The Microdrill – The high speed drill for stereotaxic use (catalog number: RWD-78001) is engineered for precision performance in laboratory settings. It offers user-friendly operation, robust construction, and compatibility with standard laboratory workflows to maximize experimental efficiency and reproducibility.
Is the Microdrill – The high speed drill for stereotaxic use available in Israel with local support?
Yes. NBT Ltd is the exclusive distributor of this product in Israel. Our team of scientific specialists provides full local support including installation, application training, and ongoing technical assistance for the Microdrill – The high speed drill for stereotaxic use.
What accessories or systems is the Microdrill – The high speed drill for stereotaxic use compatible with?
The Microdrill – The high speed drill for stereotaxic use is designed to integrate seamlessly with complementary laboratory instruments and software used in its application domain. NBT Ltd can advise on compatible accessories, consumables, and system configurations to meet your specific research needs.
