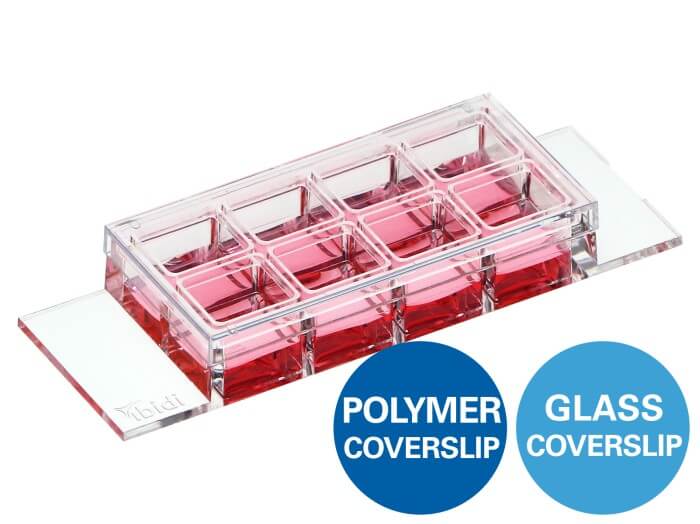

ibidi µ-Slide 8 Well high
An eight-chamber slide for immunofluorescence, live cell imaging, and multi-step assays. Features 300 µL per well with individual isolation walls, #1.5 Polymer or Glass Coverslip bottom, and cost-effective geometry for diverse microscopy platforms.
What is the µ-Slide 8 Well high?
An eight-well chambered coverslip slide designed for immunofluorescence, live cell imaging, and multi-step cell-based assays. Each well has a volume of 300 microliters and features individual isolation walls to minimize cross-contamination. The slide accepts #1.5 Polymer or #1.5H Glass Coverslip bottoms, enabling high-resolution microscopy across multiple imaging platforms.
The µ-Slide 8 Well high combines cost-effective chamber geometry with optical quality suited for widefield fluorescence, confocal, and DIC microscopy. Extra-high walls support reliable workflows while maintaining low per-well reagent volumes.
Key Features
- 8 independent wells – 300 µL per well for effective assay design with low cell numbers
- High wall design – Minimizes cross-contamination and enables multi-step protocols
- Optical quality bottom – #1.5 Polymer or #1.5H Glass for high-resolution imaging
- Low volume efficiency – Cost-effective reagent consumption
- Standard slide format – Fits standard microscope stage and cover glass readers
.webp)
Technical Specifications
| Catalog Numbers | IBD-80806 (Polymer), IBD-80807 (Glass Bottom) |
| Number of Wells | 8 |
| Well Volume | 300 µL |
| Well Dimensions | 9.4 × 10.7 × 9.3 mm |
| Coverslip Options | #1.5 Polymer, #1.5H Glass |
| Surface Treatments | ibiTreat, Untreated, Collagen I, Collagen IV, Poly-L-Lysine |
| Packing | 15 per box (packed), 90 per box (packed), or 120 per box (tray) |
| Slide Format | ISO 8037/1 standard microscope slide |
Applications
- Immunofluorescence and live cell imaging
- Cell cultivation and assay development
- High-resolution confocal and widefield microscopy
- Multi-step cell-based workflows
- TIRF microscopy (with glass bottom)

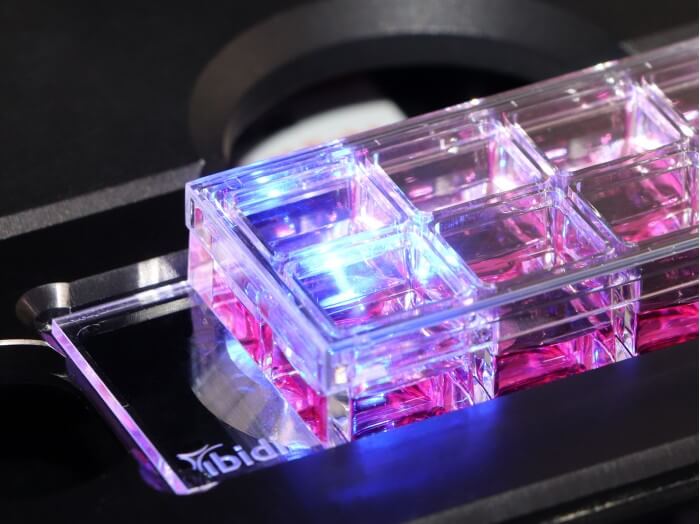

Fluorescence Imaging
Explore All ProductsCell Cultivation and Imaging
Explore All Productsibidi Labware Publications
Comprehensive collection of peer-reviewed research publications demonstrating the use of ibidi labware including µ-Slides, µ-Dishes, µ-Plates, and specialized microfluidic devices for cell biology, neurobiology, vascular biology, and cancer research.
What is the µ-Slide 8 Well high used for?
An eight-chamber slide for immunofluorescence, live cell imaging, and multi-step assays. Features 300 µL per well with individual isolation walls, #1.5 Polymer or Glass Coverslip bottom, and cost-effective geometry for diverse microscopy platforms.
Is the µ-Slide 8 Well high compatible with high-resolution microscopy?
Yes. The µ-Slide 8 Well high features ibidi's premium #1.5 polymer or glass coverslip-equivalent bottom, compatible with confocal, fluorescence, TIRF, and high-NA oil-immersion objectives on standard inverted microscopes.
Is the µ-Slide 8 Well high sterile and ready to use?
Yes. All ibidi labware ships sterilized and individually wrapped, ready for direct cell seeding without additional preparation.
What surface treatment options are available for the µ-Slide 8 Well high?
ibidi labware is offered in multiple surface treatments including ibiTreat (tissue-culture treated), Bioinert, hydrophobic, and uncoated — selected to match adherent or suspension cell requirements.
Is the µ-Slide 8 Well high available with local Israeli support?
Yes. NBT Ltd is the exclusive ibidi distributor in Israel, providing application training, installation guidance, and full local technical support for the µ-Slide 8 Well high.
