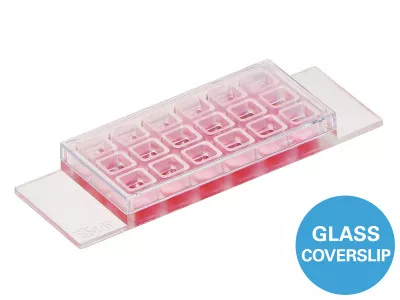

Microscopy slide that is ideal for high-resolution imaging through the No. 1.5H glass bottom with the highest optical quality and low thickness variability.

‍

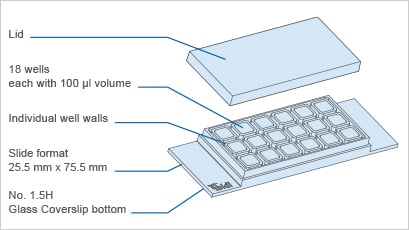

Technical Drawing

Technical drawings and details are available in the Instructions (PDF).

‍

Technical Features

• Chambered glass coverslip with 18 independent wells
• Bottom made from D 263 M Schott glass, No. 1.5H (170 +/- 5 µm)
• May require coating to promote cell attachment
• Imaging chamber slide with excellent optical quality for high-end microscopy
• Closely fitting lid for low evaporation
• Individual well walls for minimizing well-to-well crosstalk and contaminations
• Compatible with staining and fixation solutions
• Also available with an ibidi Polymer Coverslip Bottom for superior cell growth: µ-Slide 18 Well
• Also available as an adhesive version without a bottom: sticky-Slide 18 Well

‍

Application Examples

Multiple conditions on one µ-Slide: For immunofluorescence stainings, toxicological screenings, cell surface coatings.

Fluorescence microscopy of rat fibroblasts (Rat1) in a µ-Slide 18 Well Glass Bottom. Red: alpha-tubulin, green: F-actin, stained with LifeAct-TagGFP2 Protein; blue: nuclei (ibidi Mounting Medium with DAPI). 60x objective lens, oil immersion.

‍
