GTEC-5200PRO

EEG g.Nautilus-PRO Flexible

CE-certified and FDA cleared wearable EEG headset to record brain activity in medical and clinical environments.

g.Nautilus PRO FLEXIBLE is a CE-certified and FDA cleared wearable EEG headset to record brain activity in medical and clinical environments. It’s available with 8/16/19/32 dry or wet EEG electrodes that can be plugged into the headset.
This makes the device especially suited for medical applications because multiple caps can be used with one headset and the cleaning is easier.

ONE AMPLIFIER. MULTIPLE CONNECTORS

This makes the device especially suited for medical applications because multiple caps can be used with one headset and the cleaning is easier.

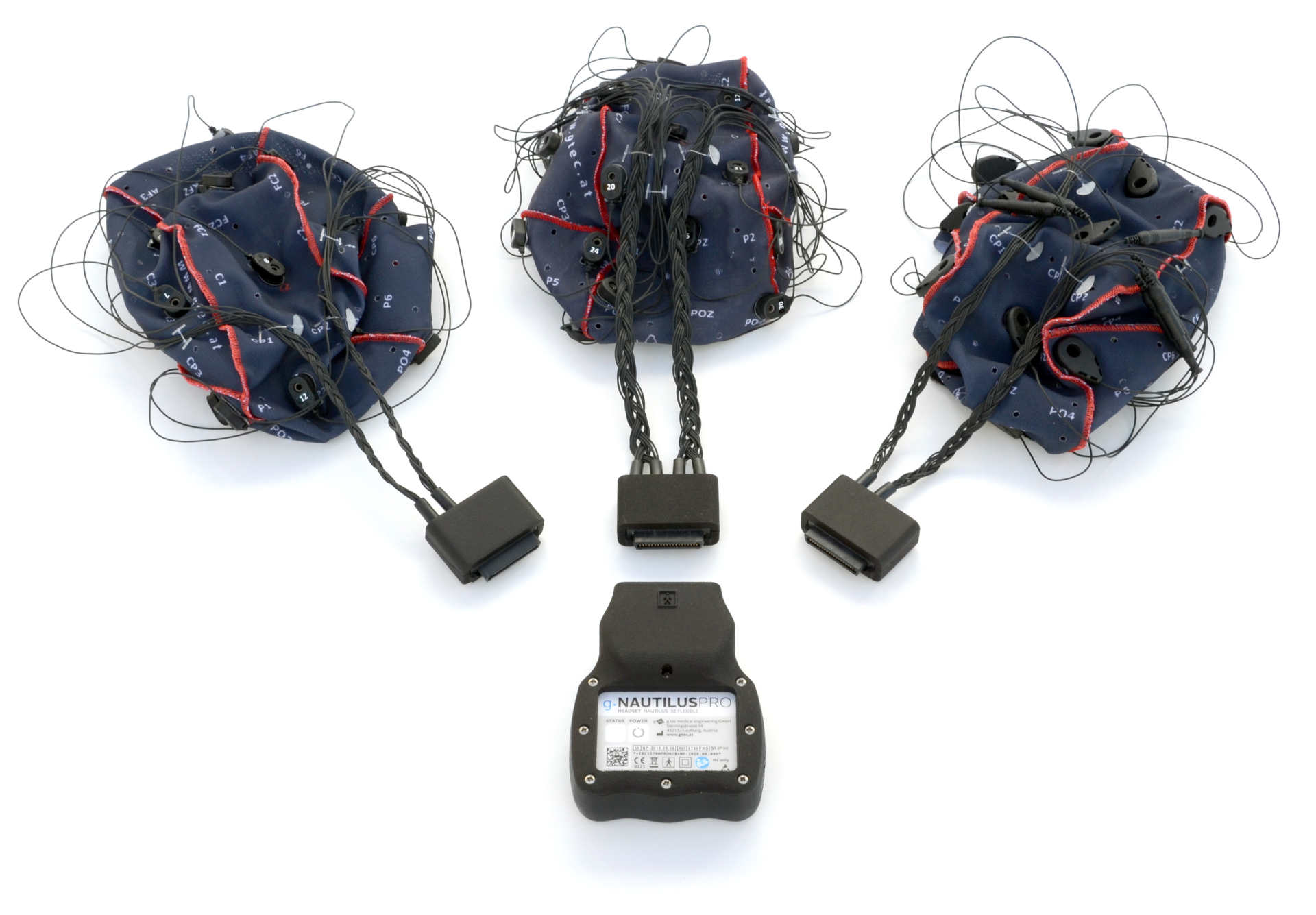

g.Nautilus PRO FLEXIBLE allows to plug-in electrode strands with g.SAHARA hybrid EEG electrodes or g.SCARABEO wet EEG electrodes. Simply pick an electrode strand best suited for your appliation. The different electrode strands hold 8/16/19/32 EEG electrodes. Additional Safety Connectors allow you to plug in different types of body sensors.

Strand g.SCARABEO
Strand g.SAHARA Hybrid
Strand g.SCARABEO + 4 Safety Connectors
Strand g.SAHARA Hybrid + 4 Safety Connectors
Strand Safety Connectors Only

PRODUCT HIGHLIGHTS

Electrode strands can be plugged into the headset

Strand with g.SAHARA hybrid EEG electrodes for dry and gel recordings

Strand with g.SCARABEO EEG electrodes for wet recordings

Strand with safety sockets to connect g.SCARABEO, g.SAHARA hybrid or g.Sensors

Easy cleaning of the electrode strands; fits ideally for medical applications

8/16/19/32 channels wearable EEG with 3-axis accelerometer

24-bit accuracy at 500 Hz sampling rate

10 hours continuous recording and 2-3 hours charging

Internal impedance check with for g.SCARABEO electrodes

A new benchmark in usability

Full software environment

CE certified and FDA cleared medical EEG headset

TECHNICAL SPECIFICATIONS

Weight	< 110 g without electrode grid
Size	78 (L) x 94 (W) x 26 (H) mm
Color	BLACK
Sensitivity	±2.25 V, ±1.125 V, ±750 mV, ±562,5 mV, ±375 mV, ±187.5 mV (software selectable)

Digital inputs	8 digital trigger inputs at Base Station
Supply	Built-in lithium ion battery, runtime > 10 h with 32 channels, inductive charging according to the QI standard of the Wireless Power Consortium
Amplifier type	Real DC coupled
32 × ADC	24 Bit (1.024 MHz internal sampling per channel)
Noise level	< 0.6 µV RMS between 1 and 30 Hz (at highest input sensitivity)
Input channels	32 mono-polar / 16 bi-polar channels with GND and REF (software selectable)
Input impedance	DC > 100 MOhm
Applied part	BF
Safety class	II
Certification and Standards	CE certified and FDA cleared medical device IEC60601-1 3rd, IEC60601-1-2, IEC62304, IEC60601-2-26, ISO 14971 10993-1, 62366, 2010-2012 IEEE Recommended Practice for Neurofeedback Systems
