• Extremely small
• Optimized for CNS use
• Ideal for long-term implantation
• Membrane lengths: 1 or 2 mm
• Membrane diameter: 0.24 mm (6 kDa), 0.26 mm (55 kDa) or 0.28 mm (500 kDa or 2 MDa)
• Available metal free or β-irradiated

‍

The CMA 7 Microdialysis Probe is ideal for use in small areas of the brain or spinal cord of small animals. It is especially suitable for studies in transgenic mice.

The construction and geometry of the CMA 7 6 kDa Microdialysis Probe tip is exactly the same as in the CMA 11. The outer diameter is 0.24 mm and the shaft length is 7 mm.

New CMA 7 microdialysis probes are now available with 55 kDa cut-off and 0.26 mm outer diameter (more details in the Specifications section).

New CMA 7 microdialysis probes for large molecules are also now available with 500 kDa and 2 MDa cut-off, 0.28 mm outer diameter and 7 mm shaft length (more details in the Specifications section).

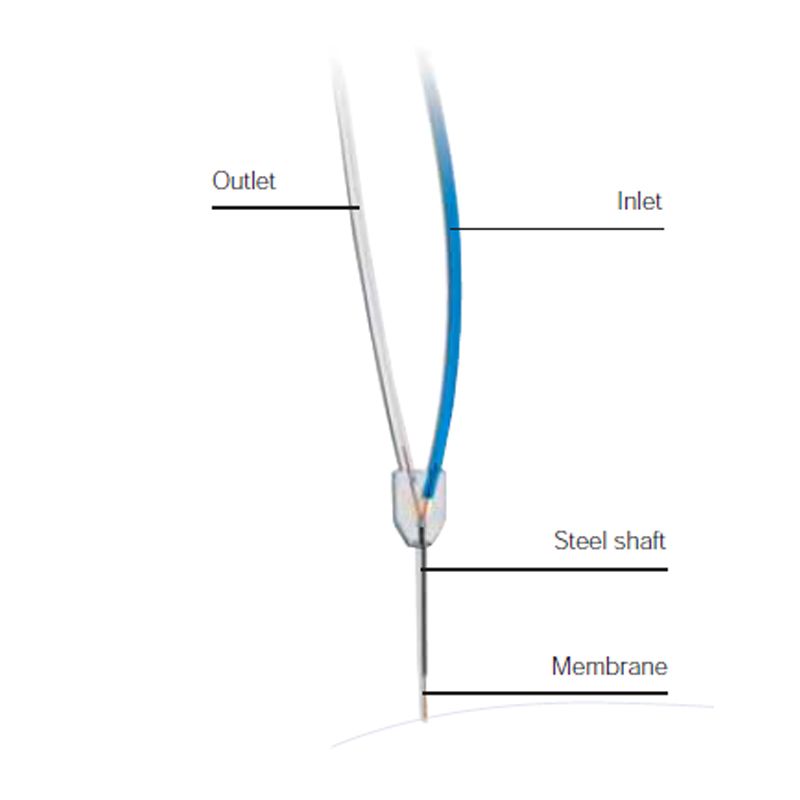

An extremely small plastic body, where the inlet and outlet tubing are directly mounted, makes this probe easy to implant and light for a small animal to carry. A matching small and lightweight guide cannula is available.

Standard part numbers are available for metal free or β-irradiated CMA 7 6 kDa probes.

For metal free or β-irradiated CMA 7 55 kDa, 500kDa and 2MDa probes, please make your request using our Custom Probe Form and send it to our Technical Support Team. We will contact you promptly.

CMA 7 Microdialysis Probes are guaranteed for single use.

‍
