The new gold standard for finger tracking
Capture every detailed movement using our precise Quantum tracking technology. There are no more limitations to your finger capture. Save valuable time while animating, without losing the lifelike feeling of your movements.
All MANUS Metagloves come with a full 2-year warranty.
MANUS products are tested to the highest standards throughout the assembly and QC process.
Compatible with industry standards
Real-time streaming with MANUS Core
Our central software MANUS Core is a data-handling tool developed to receive MANUS glove data and SteamVR tracking data and output this optimally to your desired target. Using native or added plugins finger data will stream real-time to Unreal and Unity. MANUS Core is included with our Quantum Metagloves.
SDK and recording finger data.
Our open SDK allows for building any other integration. The recording function allows you to record your session, edit them, and export them as FBX files. You will be able to make use of our timecode & genlock feature while recording. On top of that, we have the functionality to trigger your mocap session with the use of our ‘Motive 2.0 triggered recording function and‘Vicon Shogun triggered recording’ function. These options allow external software to trigger our recording software and export the recorded data.
Uninterrupted workflow.
Swappable batteries to stay charged
The Quantum Metagloves come with swappable batteries, to provide you with an uninterrupted workflow. The Quantum batteries can last up to 3 hours during continuous use on a full charge. Additionally, the Quantum Metagloves can be powered by an external power source through the USB Type-C port.
Charging station
Fully charge up to 6 batteries simultaneously in 1 hour. This charging station is also compatible with Prime X and Pro Tracker batteries, so you can charge your Metaglove and SteamVR Pro Tracker batteries at the same time.
Do you need more?

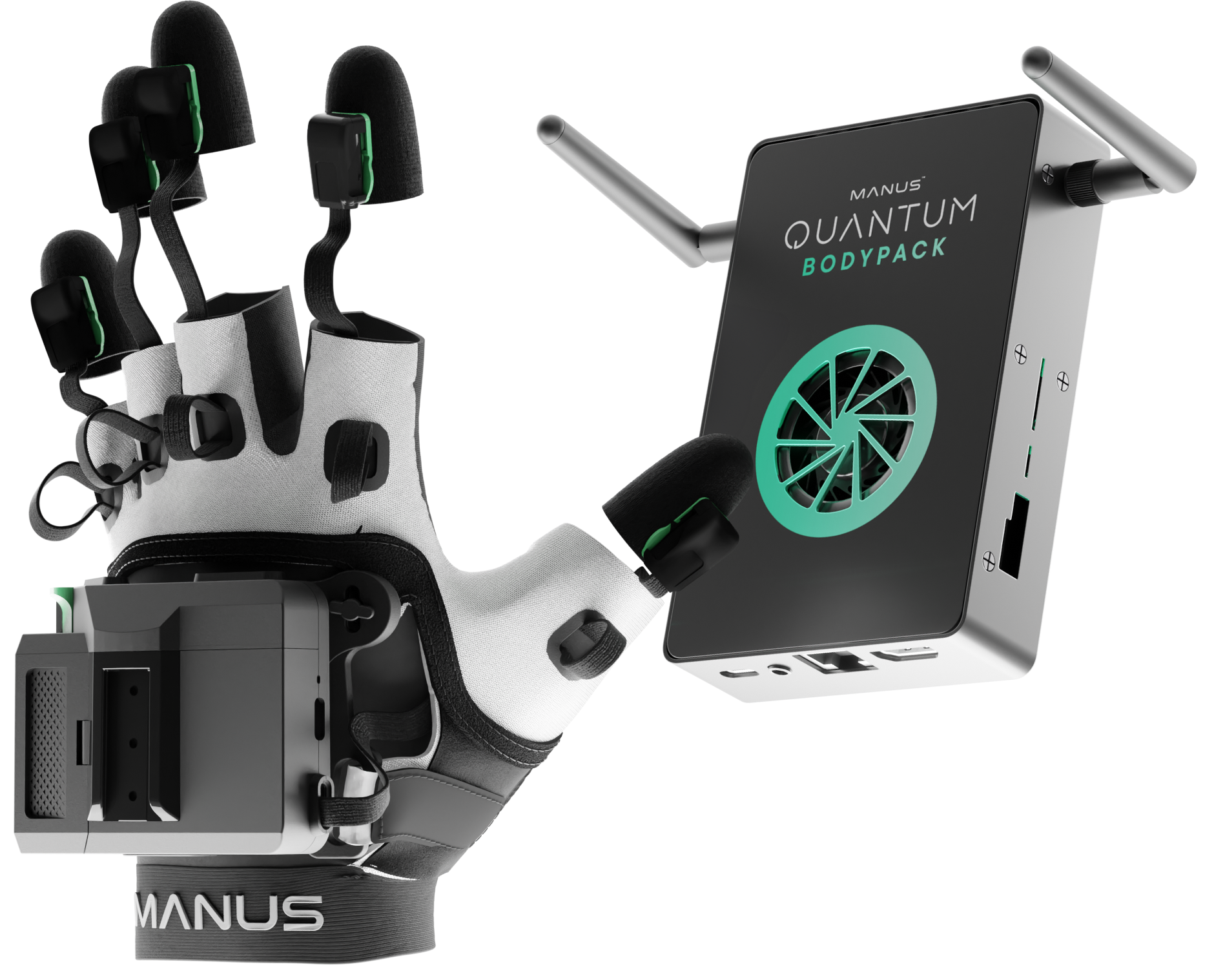

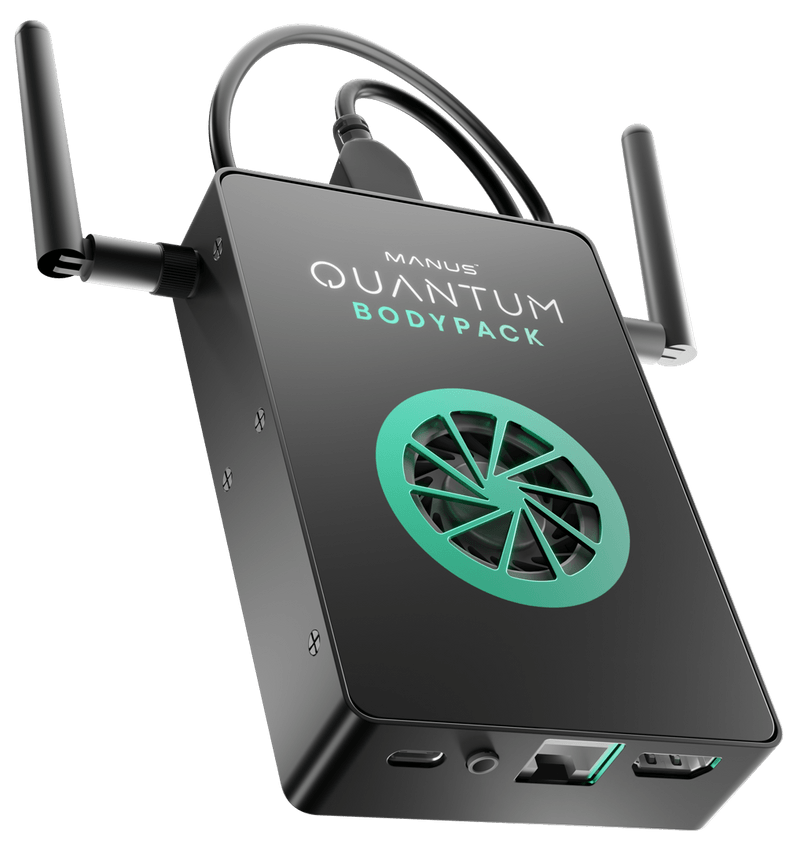

Combining the Quantum Metagloves with the Quantum Bodypack allows you to increase your productivity and reliability of data significantly.
- On Body Recording
- Zero Data Loss
- Unlimited Range
- Export as Solved Hands Skeletons or Virtual Markers
- Triggered Recording with Timecode & Genlock Compatibility
Zero Loss on-body recording at 120 fps
Record every frame at 120 frames per second with zero data loss. Export this data as solved hands or virtual markers for hassle free integration with optical pipelines. The MANUS Quantum Bodypack is compatible with remote triggered recording as well as Timecode & Genlock.
Ultimate range live streaming over WiFi
Extend your range through WiFi 6 streaming over local network. Stream live hand capture data over WiFi to any workstation running OptiTrack Motive 3, Autodesk MotionBuilder, Unreal Engine or Unity without subscription costs.
Technical Specifications
Signal latency ≤ 7.5ms
Finger sensor type – Absolute position, 3 axis rotation
Sensor sample rate – 120Hz
Battery duration – Up to 3 hours (swappable batteries)
Charging time – 2 hours USB Type-C
Weight – 138 grams (including battery)
Wired communication – USB Type-C
Wireless communication – Bluetooth Low Energy 5
Wireless range – Up to 15 meters
Supported operating system – Windows 10/11
Finger attachments – Finger sleeves, finger tapes
Textile information – One size fits all (washable)
